P4SMAJ13A - 400W Transient Voltage Suppressor

Download the P4SMAJ13A datasheet PDF. This datasheet also covers the P4SMAJ8.2A variant, as both devices belong to the same 400w transient voltage suppressor family and are provided as variant models within a single manufacturer datasheet.

Description

400 W uni- and bi-directional Transient Voltage Suppressor (TVS) in a SMA Surface-Mounted Device (SMD) plastic package, designed for transient voltage protection.

2.

Features

  • Rated peak pulse power at 10/1000 μs waveform: PPPM = 400 W.
  • Reverse standoff voltage: VRWM = 7.02 V to 214 V.
  • Reverse current: IR less than 1 μA for VRWM ≥ 11.1 V.
  • Excellent clamping capability.
  • Small plastic package suitable for surface-mounted design 3.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (P4SMAJ8.2A-nexperia.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number P4SMAJ13A
Manufacturer Nexperia
File Size 211.01 KB
Description 400W Transient Voltage Suppressor
Datasheet download datasheet P4SMAJ13A Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
P4SMAJ13A 400W Surface Mount Transient Voltage Suppressor TAITRON
P4SMAJ13A 400W SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR Frontier Electronics
P4SMAJ13A SMD Transient Voltage Suppressor Diodes Diotec Semiconductor
P4SMAJ13A SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR Power SIlicon
P4SMAJ13A 400W SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR WON-TOP

Other Datasheets by Nexperia

Part Number Description
P4SMAJ130A 400W Transient Voltage Suppressor
P4SMAJ100A 400W Transient Voltage Suppressor
P4SMAJ10A 400W Transient Voltage Suppressor
P4SMAJ110A 400W Transient Voltage Suppressor
P4SMAJ11A 400W Transient Voltage Suppressor

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

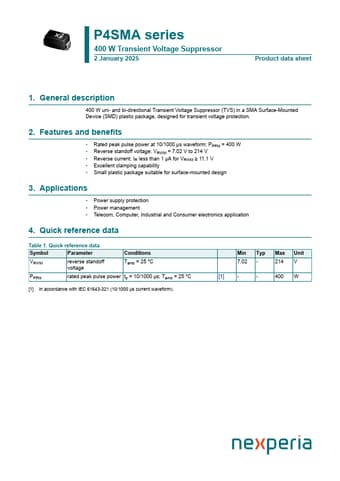

SMA P4SMA series 400 W Transient Voltage Suppressor 2 January 2025 Product data sheet 1. General description 400 W uni- and bi-directional Transient Voltage Suppressor (TVS) in a SMA Surface-Mounted Device (SMD) plastic package, designed for transient voltage protection. 2. Features and benefits • Rated peak pulse power at 10/1000 μs waveform: PPPM = 400 W • Reverse standoff voltage: VRWM = 7.02 V to 214 V • Reverse current: IR less than 1 μA for VRWM ≥ 11.1 V • Excellent clamping capability • Small plastic package suitable for surface-mounted design 3. Applications • Power supply protection • Power management • Telecom, Computer, Industrial and Consumer electronics application 4. Quick reference data Table 1.
