P4SMAJ120A, P4SMAJ8.2A 400W Transient Voltage Suppressor

P4SMAJ120A Description

SMA P4SMA series 400 W Transient Voltage Suppressor 2 January 2025 Product data sheet 1.General .
400 W uni- and bi-directional Transient Voltage Suppressor (TVS) in a SMA Surface-Mounted Device (SMD) plastic package, designed for transient voltage.

P4SMAJ120A Features

* Rated peak pulse power at 10/1000 μs waveform: PPPM = 400 W
* Reverse standoff voltage: VRWM = 7.02 V to 214 V
* Reverse current: IR less than 1 μA for VRWM ≥ 11.1 V
* Excellent clamping capability
* Small plastic package suitable for surface-mounted design

P4SMAJ120A Applications

* Power supply protection
* Power management
* Telecom, Computer, Industrial and Consumer electronics application 4. Quick reference data Table 1. Quick reference data Symbol Parameter Conditions VRWM reverse standoff voltage Tamb = 25 °C PPPM rated peak pulse power

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: P4SMAJ120A, P4SMAJ8.2A. Please refer to the document for exact specifications by model.

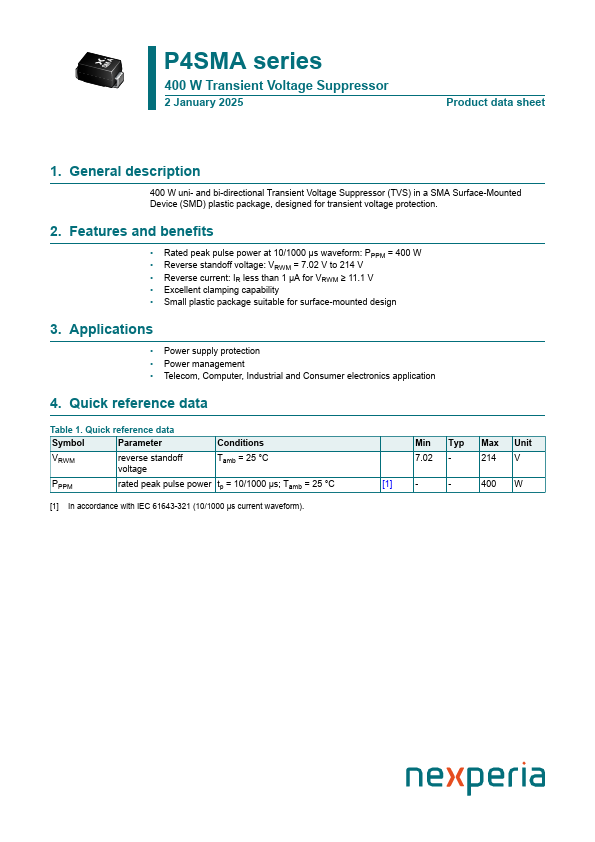

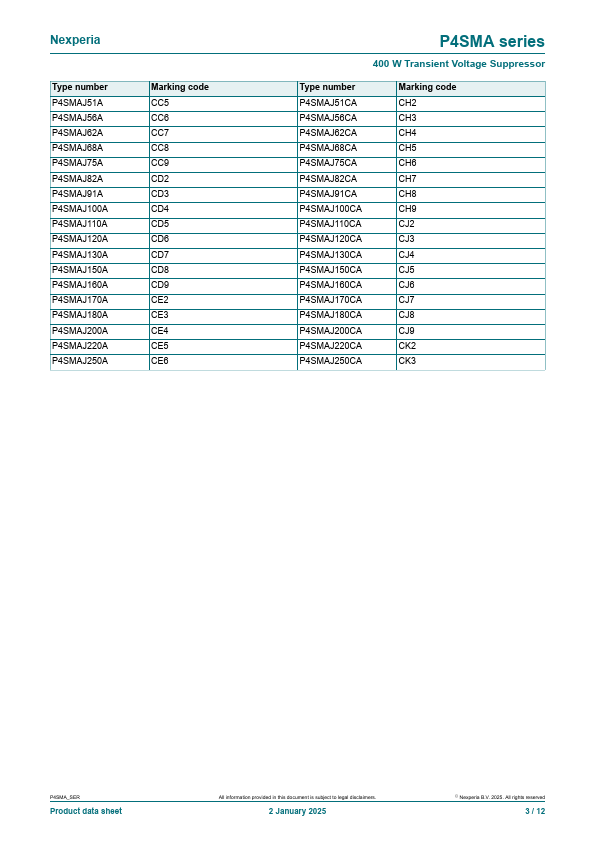

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
P4SMAJ120A, P4SMAJ8.2A
Manufacturer
nexperia ↗
File Size
211.01 KB
Datasheet
P4SMAJ8.2A-nexperia.pdf
Description
400W Transient Voltage Suppressor
Note
This datasheet PDF includes multiple part numbers: P4SMAJ120A, P4SMAJ8.2A.
Please refer to the document for exact specifications by model.
