NXB0108 - Dual supply translating transceiver

Product Overview

nexperia

📥 Download Datasheet

NXB0108 Dual supply translating transceiver by nexperia - Datasheet Preview — Datasheet preview – NXB0108

Datasheet Details

Part number	NXB0108
Manufacturer	nexperia
File Size	317.65 KB
Description	Dual supply translating transceiver
Datasheet	NXB0108 Datasheet

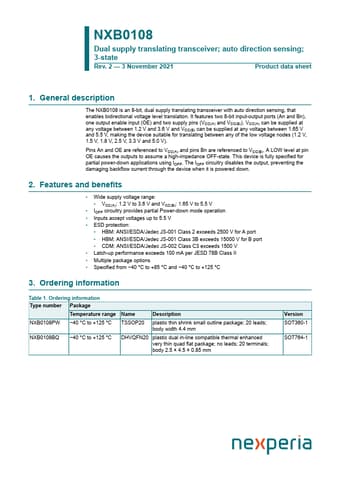

Additional preview pages of the NXB0108 datasheet.

Product details

Description

The NXB0108 is an 8-bit, dual supply translating transceiver with auto direction sensing, that enables bidirectional voltage level translation.

Features

Wide supply voltage range:.
VCC(A): 1.2 V to 3.6 V and VCC(B): 1.65 V to 5.5 V.
IOFF circuitry provides partial Power-down mode operation.
Inputs accept voltages up to 5.5 V.
ESD protection:.
HBM: ANSI/ESDA/Jedec JS-001 Class 2 exceeds 2500 V for A port.
HBM: ANSI/ESDA/Jedec JS-001 Class 3B exceeds 15000 V for B port.
CDM: ANSI/ESDA/Jedec JS-002 Class C3 exceeds 1500 V.
Latch-up performance exceeds 100 mA per JESD.
