NSF030120T2A0 - 1200V N-channel SiC MOSFET

nexperia

📥 Download Datasheet

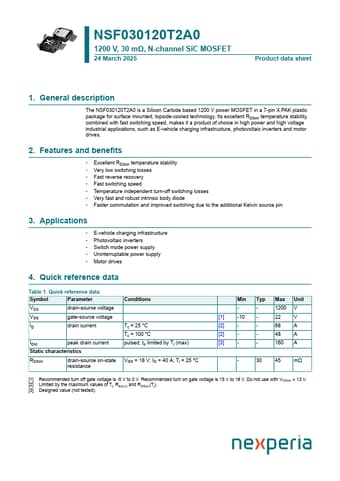

NSF030120T2A0 Datasheet Preview — Preview of NSF030120T2A0 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	NSF030120T2A0
Manufacturer	nexperia
File Size	1.39 MB
Description	1200V N-channel SiC MOSFET
Datasheet	NSF030120T2A0-nexperia.pdf

NSF030120T2A0 Product details

Description

The NSF030120T2A0 is a Silicon Carbide based 1200 V power MOSFET in a 7-pin X.PAK plastic package for surface mounted, topside-cooled technology.

Features

Excellent RDSon temperature stability.
Very low switching losses.
Fast reverse recovery.
Fast switching speed.
Temperature independent turn-off switching losses.
Very fast and robust intrinsic body diode.
Faster commutation and improved switching due to the additional Kelvin source pin 3.
