NEX81916 - Fast turn-off dual synchronous rectifiers (SR) controller

Product Overview

nexperia

📥 Download Datasheet

NEX81916 Fast turn-off dual synchronous rectifiers (SR) controller by nexperia - Datasheet Preview — Datasheet preview – NEX81916

Datasheet Details

Part number	NEX81916
Manufacturer	nexperia
File Size	261.08 KB
Description	Fast turn-off dual synchronous rectifiers (SR) controller
Datasheet	NEX81916 Datasheet

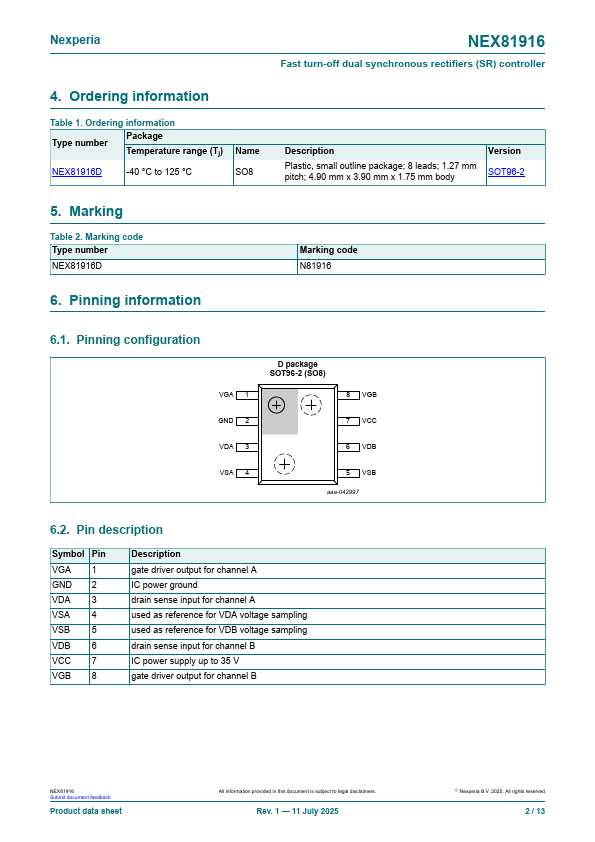

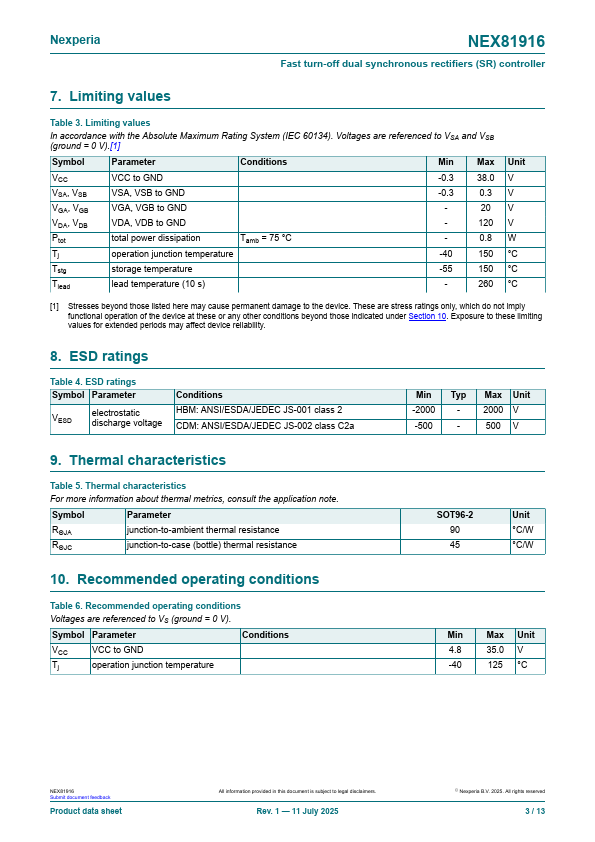

Additional preview pages of the NEX81916 datasheet.

Product details

Description

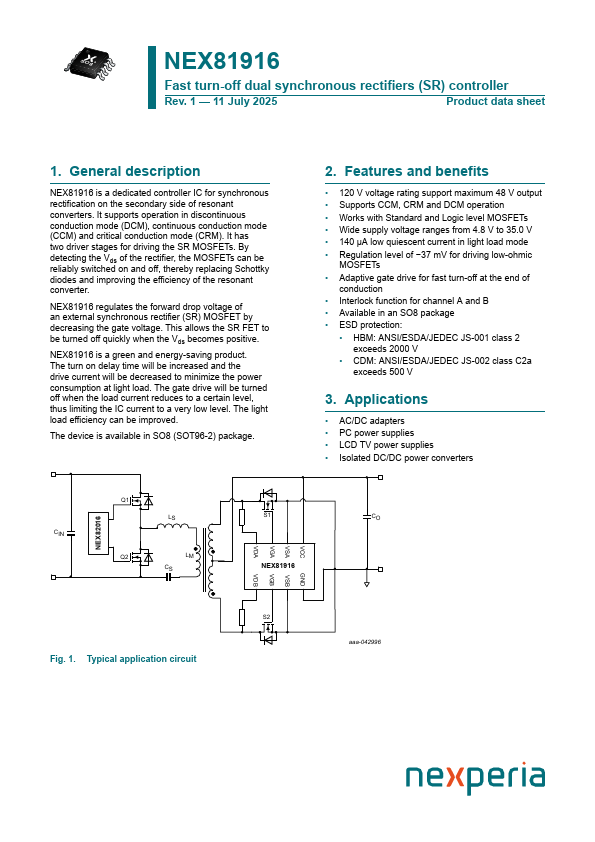

NEX81916 is a dedicated controller IC for synchronous rectification on the secondary side of resonant converters.

Features

120 V voltage rating support maximum 48 V output.
Supports CCM, CRM and DCM operation.
Works with Standard and Logic level MOSFETs.
Wide supply voltage ranges from 4.8 V to 35.0 V.
140 μA low quiescent current in light load mode.
Regulation level of.
37 mV for driving low-ohmic MOSFETs.
Adaptive gate drive for fast turn-off at the end of conduction.
Interlock function for channel A and B.
Available in an SO.
