MURS160A 600V 1A ultrafast recovery rectifier

MURS160A Description

SMA MURS160A 600 V, 1 A ultrafast recovery rectifier in SMA 17 February 2025 Product data sheet 1.General .
Ultrafast recovery rectifier, encapsulated in an SMA package. Reverse voltage: VR ≤ 600 V. Forward curren.

MURS160A Features

* Reverse voltage: VR ≤ 600 V
* Forward current: IF ≤ 1 A
* Ultrafast recovery time: trr ≤ 50 ns
* Pt doped life time control
* Ideal for automated placement
* Glass passivated chip junction

MURS160A Applications

* Rectification
* Reverse polarity protection
* Fast switching
* Freewheeling applications 4. Quick reference data Table 1. Quick reference data Symbol Parameter Conditions IF(AV) average forward current δ = 0.5; f = 20 kHz; square wave; Tsp ≤ 140 °C VRRM re

📥 Download Datasheet

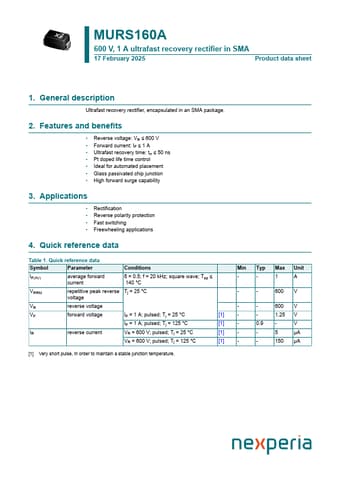

Preview of MURS160A PDF
datasheet Preview Page 2 datasheet Preview Page 3
