MMBZ5V6AL - ESD protection diode

Description

Unidirectional double ElectroStatic Discharge (ESD) protection diodes in a common anode configuration, encapsulated in a SOT23 (TO-236AB) small Surface-Mounted Device (SMD) plastic package.

The devices are designed for ESD and transient overvoltage protection of up to two signal lines.

Table 1.

Features

  • Unidirectional ESD protection of.
  • ESD protection up to 30 kV (contact two lines discharge).
  • Bidirectional ESD protection of one line.
  • IEC 61000-4-2; level 4 (ESD).
  • Low diode capacitance: Cd ≤ 280 pF.
  • Rated peak pulse power: PPPM = 40 W.
  • Ultra low leakage current: IRM = 5 nA.
  • IEC 61643-321.
  • AEC-Q101 qualified 1.3.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
MMBZ5V6AL Transient Voltage suppressor ROHM
MMBZ5V6AL 24W AND 40W PEAK POWER DUAL SURFACE MOUNT TVS Diodes
MMBZ5V6AL Low capacitance unidirectional double ESD protection diodes NXP
MMBZ5V6AL ElectroStatic Discharge Protection Devices SEMIWILL
MMBZ5V6ALAQ 24W AND 40W PEAK POWER DUAL SURFACE-MOUNT TVS DIODES

Other Datasheets by Nexperia

Part Number Description
MMBZ10VAL ESD protection diode
MMBZ12VAL ESD protection diode
MMBZ15VAL ESD protection diode
MMBZ16VAL High surge current unidirectional double ESD protection diodes
MMBZ16VTAL High surge current unidirectional double ESD protection diodes

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

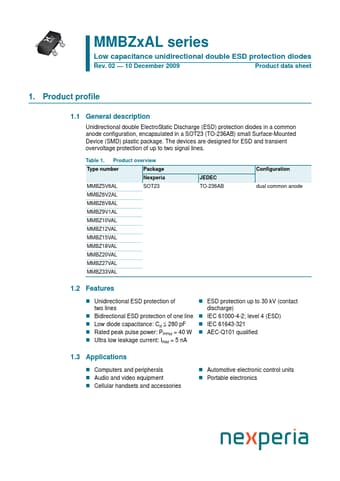

MMBZxAL series Low capacitance unidirectional double ESD protection diodes Rev. 02 — 10 December 2009 Product data sheet 1. Product profile 1.1 General description Unidirectional double ElectroStatic Discharge (ESD) protection diodes in a common anode configuration, encapsulated in a SOT23 (TO-236AB) small Surface-Mounted Device (SMD) plastic package. The devices are designed for ESD and transient overvoltage protection of up to two signal lines. Table 1. Product overview Type number Package Nexperia MMBZ5V6AL SOT23 MMBZ6V2AL MMBZ6V8AL MMBZ9V1AL MMBZ10VAL MMBZ12VAL MMBZ15VAL MMBZ18VAL MMBZ20VAL MMBZ27VAL MMBZ33VAL JEDEC TO-236AB Configuration dual common anode 1.
