MMBT3906 - 200mA PNP switching transistor

Description

PNP switching transistor in a small SOT23 Surface-Mounted Device (SMD) plastic package.

2.

Features

  • Collector current capability IC = -200 mA.
  • Collector-emitter voltage VCEO = -40 V.
  • AEC-Q101 qualified 3.

📥 Download Datasheet

Datasheet Details

Part number MMBT3906
Manufacturer nexperia
File Size 215.19 KB
Description 200mA PNP switching transistor
Datasheet download datasheet MMBT3906 Datasheet

📁 Similar Datasheet

  • MMBT3906 - 40V PNP SMALL SIGNAL TRANSISTOR (Diodes)
  • MMBT3906 - PNP Transistor (CITC)
  • MMBT3906 - PNP Transistor (GOOD-ARK)
  • MMBT3906 - PNP General-Purpose Amplifier (ON Semiconductor)
  • MMBT3906 - SMALL SIGNAL PNP TRANSISTOR (STMicroelectronics)
  • MMBT3906 - PNP General Purpose Amplifier (Fairchild)
  • MMBT3906 - PNP Silicon Switching Transistor (Infineon Technologies AG)
  • MMBT3906 - PNP SILICON TRANSISTOR (UTC)
  • MMBT3906 - PNP switching transistor (NXP)
  • MMBT3906 - SWITCHING TRANSISTOR (HOTTECH)
Other Datasheets by nexperia
  • MMBT3906-Q - 40V 200mA PNP switching transistor
  • MMBT3904 - 40V 200mA NPN switching transistor
  • MMBZ10VAL - ESD protection diode
  • MMBZ12VAL - ESD protection diode
  • MMBZ15VAL - ESD protection diode
  • MMBZ16VAL - High surge current unidirectional double ESD protection diodes
  • MMBZ16VTAL - High surge current unidirectional double ESD protection diodes
  • MMBZ18VAL - ESD protection diode

Full PDF Text Transcription

Click to expand full text

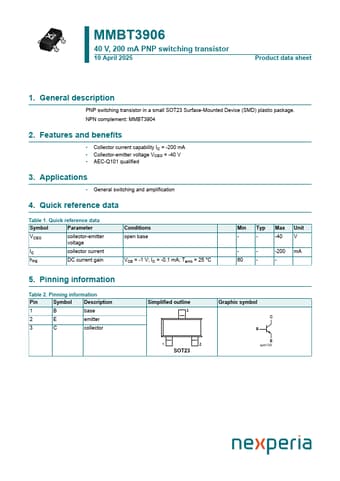

MMBT3906 40 V, 200 mA PNP switching transistor 10 April 2025 Product data sheet 1. General description PNP switching transistor in a small SOT23 Surface-Mounted Device (SMD) plastic package. NPN complement: MMBT3904 2. Features and benefits • Collector current capability IC = -200 mA • Collector-emitter voltage VCEO = -40 V • AEC-Q101 qualified 3. Applications • General switching and amplification 4. Quick reference data Table 1. Quick reference data Symbol Parameter VCEO collector-emitter voltage IC collector current hFE DC current gain Conditions open base VCE = -1 V; IC = -0.1 mA; Tamb = 25 °C Min Typ Max Unit - - -40 V - - 60 - -200 mA - 5. Pinning information Table 2.
