HEF4894B - 12-stage shift-and-store register LED driver

HEF4894B Description

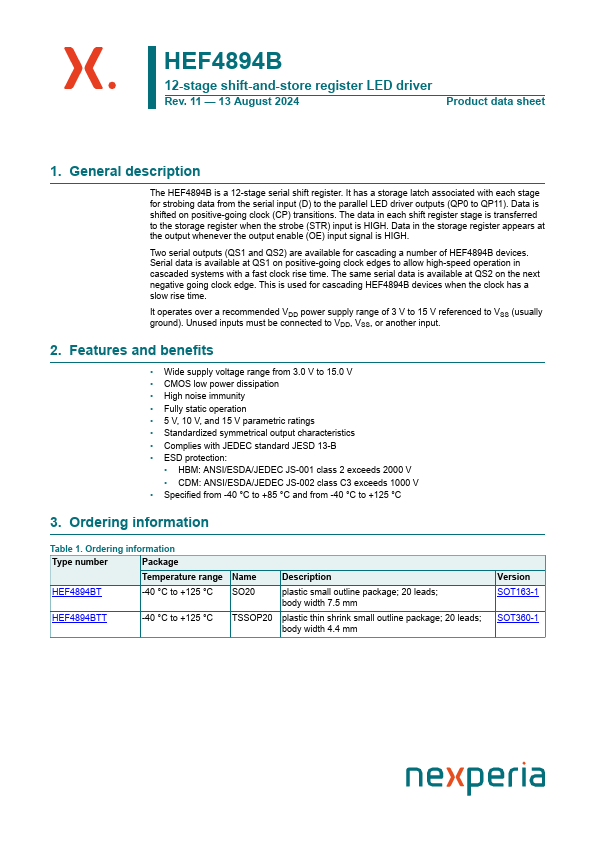

HEF4894B 12-stage shift-and-store register LED driver Rev.11 * 13 August 2024 Product data sheet 1.General .
The HEF4894B is a 12-stage serial shift register.

HEF4894B Features

* Wide supply voltage range from 3.0 V to 15.0 V
* CMOS low power dissipation
* High noise immunity
* Fully static operation
* 5 V, 10 V, and 15 V parametric ratings
* Standardized symmetrical output characteristics
* Complies with JEDEC standa

📥 Download Datasheet

Preview of HEF4894B PDF

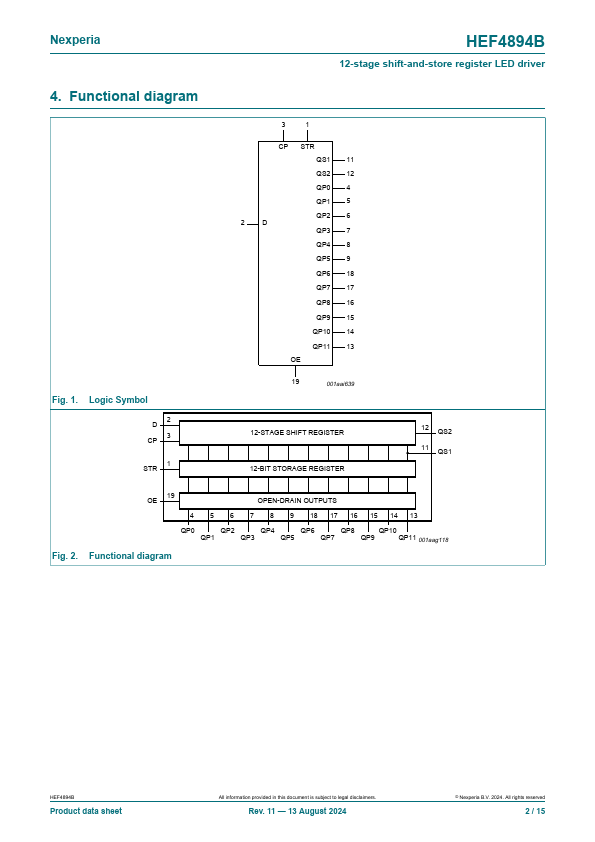

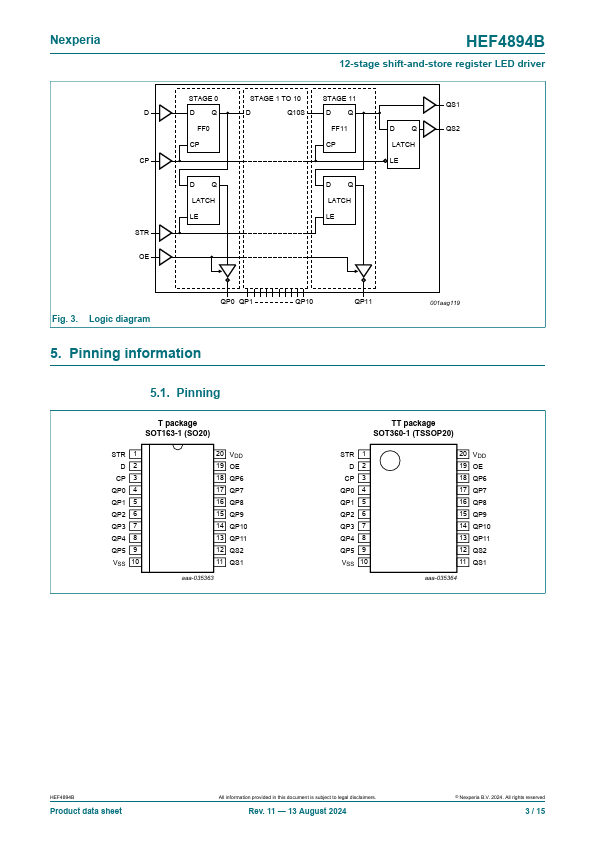

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
HEF4894B
Manufacturer
nexperia ↗
File Size
273.36 KB
Datasheet
HEF4894B-nexperia.pdf
Description
12-stage shift-and-store register LED driver
