BZX84J-C2V4 - Voltage regulator diodes

Download the BZX84J-C2V4 datasheet PDF. This datasheet also covers the BZX84J variant, as both devices belong to the same voltage regulator diodes family and are provided as variant models within a single manufacturer datasheet.

Description

General-purpose Zener diodes in a SOD323F (SC-90) very small and flat lead Surface-Mounted Device (SMD) plastic package.

2.

Features

  • Non-repetitive peak reverse power dissipation: ≤ 100 W for types ≤ 6.8 V.
  • Non-repetitive peak reverse power dissipation: ≤ 40 W for types ≥ 7.5 V.
  • Total power dissipation: Ptot ≤ 550 mW.
  • Wide working voltage range: nominal 2.4 V to 75 V (E24 range).
  • Two tolerance series: ± 2 % and ± 5 %.
  • Small plastic package suitable for surface-mounted design.
  • Low differential resistance.
  • AEC-Q101 qualified 3.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (BZX84J-nexperia.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

Part Number Description Manufacturer
BZX84J Single Zener diodes NXP
BZX84 Voltage regulator diodes NXP
BZX84 Zener Diodes General Semiconductor
BZX84 Voltage regulator diodes Philips
BZX84-A10 Voltage regulator diodes NXP

Other Datasheets by Nexperia

Part Number Description
BZX84J-C2V7 Voltage regulator diodes
BZX84J-C20 Voltage regulator diodes
BZX84J-C22 Voltage regulator diodes
BZX84J-C24 Voltage regulator diodes
BZX84J-C27 Voltage regulator diodes

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

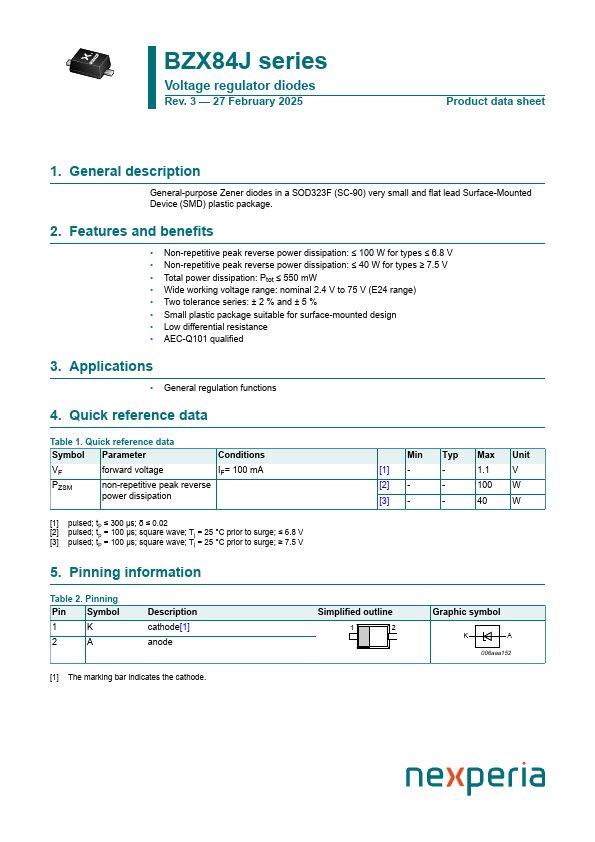

BZX84J series Voltage regulator diodes Rev. 3 — 27 February 2025 Product data sheet 1. General description General-purpose Zener diodes in a SOD323F (SC-90) very small and flat lead Surface-Mounted Device (SMD) plastic package. 2. Features and benefits • Non-repetitive peak reverse power dissipation: ≤ 100 W for types ≤ 6.8 V • Non-repetitive peak reverse power dissipation: ≤ 40 W for types ≥ 7.5 V • Total power dissipation: Ptot ≤ 550 mW • Wide working voltage range: nominal 2.4 V to 75 V (E24 range) • Two tolerance series: ± 2 % and ± 5 % • Small plastic package suitable for surface-mounted design • Low differential resistance • AEC-Q101 qualified 3. Applications • General regulation functions 4. Quick reference data Table 1.
