BZT52-B9V1 - Single Zener diodes

Download the BZT52-B9V1 datasheet PDF. This datasheet also covers the BZT52-B2V4 variant, as both devices belong to the same single zener diodes family and are provided as variant models within a single manufacturer datasheet.

Description

General-purpose Zener diodes in a SOD123 small Surface-Mounted Device (SMD) plastic package.

2.

Features

  • Total power dissipation: Ptot ≤ 590 mW.
  • Wide working voltage range: nominal 2.4 V to 75 V (E24 range).
  • Small plastic package suitable for surface-mounted design.
  • Low differential resistance.
  • Tight tolerance: ± 2 % 3.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (BZT52-B2V4-nexperia.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

Part Number Description Manufacturer
BZT52-B9V1 SURFACE MOUNT ZENER DIODES TIPTEK
BZT52-B9V1S SURFACE MOUNT SILICON ZENER DIODES Pan Jit International
BZT52-B10 SURFACE MOUNT ZENER DIODES TIPTEK
BZT52-B10S SURFACE MOUNT SILICON ZENER DIODES Pan Jit International
BZT52-B11 SURFACE MOUNT ZENER DIODES TIPTEK

Other Datasheets by Nexperia

Part Number Description
BZT52-B9V1-Q Voltage regulator diodes
BZT52-B10 Single Zener diodes
BZT52-B10-Q Voltage regulator diodes
BZT52-B11 Single Zener diodes
BZT52-B11-Q Voltage regulator diodes

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

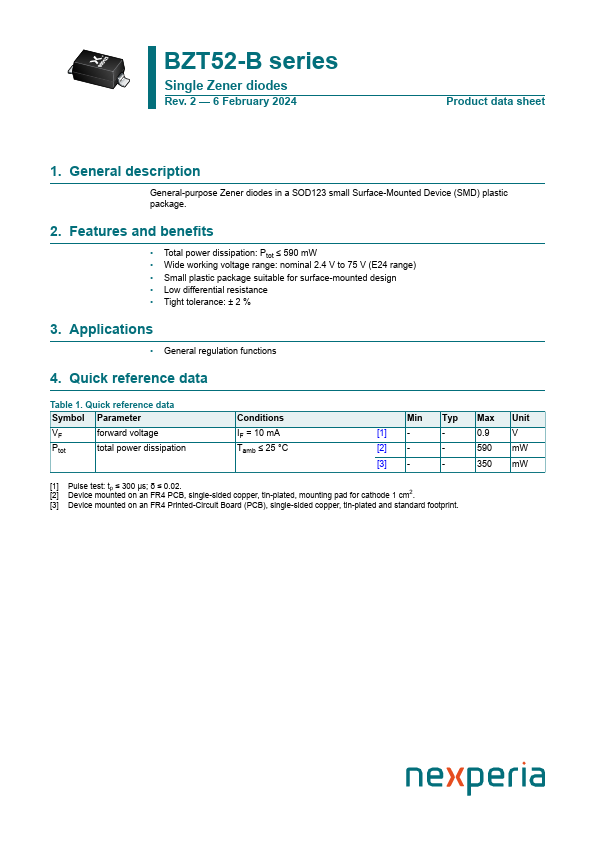

BZT52-B series Single Zener diodes Rev. 2 — 6 February 2024 Product data sheet 1. General description General-purpose Zener diodes in a SOD123 small Surface-Mounted Device (SMD) plastic package. 2. Features and benefits • Total power dissipation: Ptot ≤ 590 mW • Wide working voltage range: nominal 2.4 V to 75 V (E24 range) • Small plastic package suitable for surface-mounted design • Low differential resistance • Tight tolerance: ± 2 % 3. Applications • General regulation functions 4. Quick reference data Table 1. Quick reference data Symbol Parameter VF forward voltage Ptot total power dissipation Conditions IF = 10 mA Tamb ≤ 25 °C Min Typ [1] - - [2] - - [3] - - [1] [2] Pulse test: tp ≤ 300 μs; Device mounted on an δ ≤ 0.02.
