BZT52-B4V7, BZT52-B2V4 Single Zener diodes

BZT52-B4V7 Description

BZT52-B series Single Zener diodes Rev.2 * 6 February 2024 Product data sheet 1.General .
General-purpose Zener diodes in a SOD123 small Surface-Mounted Device (SMD) plastic package. Total power dissipati.

BZT52-B4V7 Features

* Total power dissipation: Ptot ≤ 590 mW
* Wide working voltage range: nominal 2.4 V to 75 V (E24 range)
* Small plastic package suitable for surface-mounted design
* Low differential resistance

BZT52-B4V7 Applications

* General regulation functions 4. Quick reference data Table 1. Quick reference data Symbol Parameter VF forward voltage Ptot total power dissipation Conditions IF = 10 mA Tamb ≤ 25 °C Min Typ [1] - - [2] - - [3] - - [1] [2] Pulse test: tp ≤ 300 μs; Device mounted on an δ ≤

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: BZT52-B4V7, BZT52-B2V4. Please refer to the document for exact specifications by model.

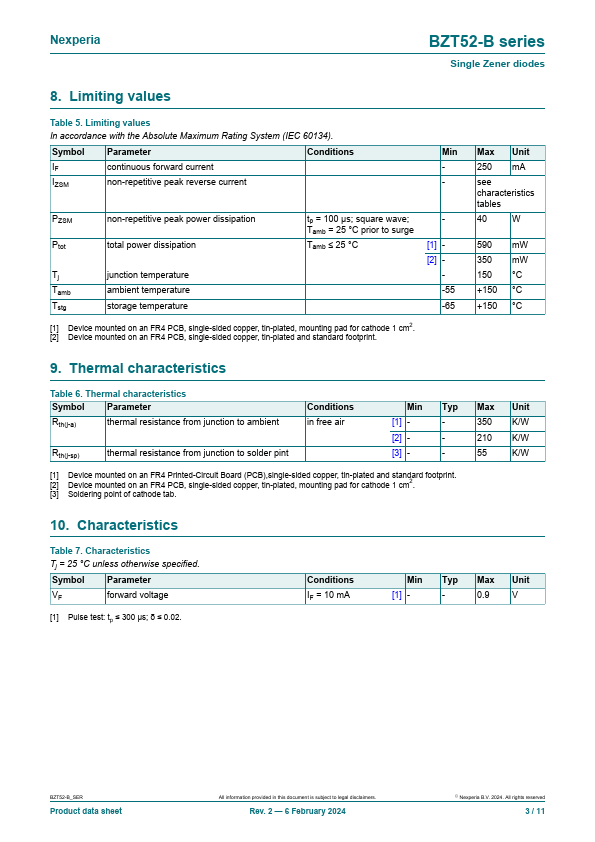

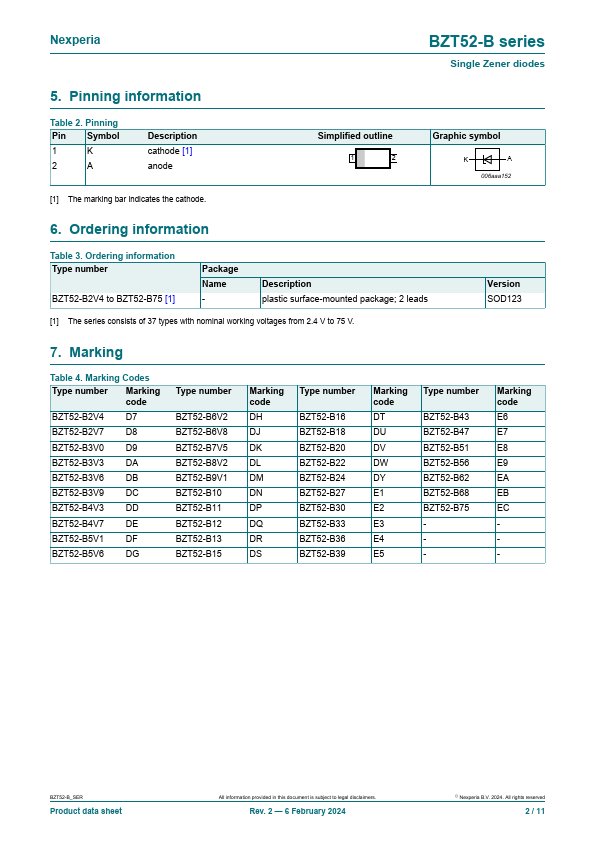

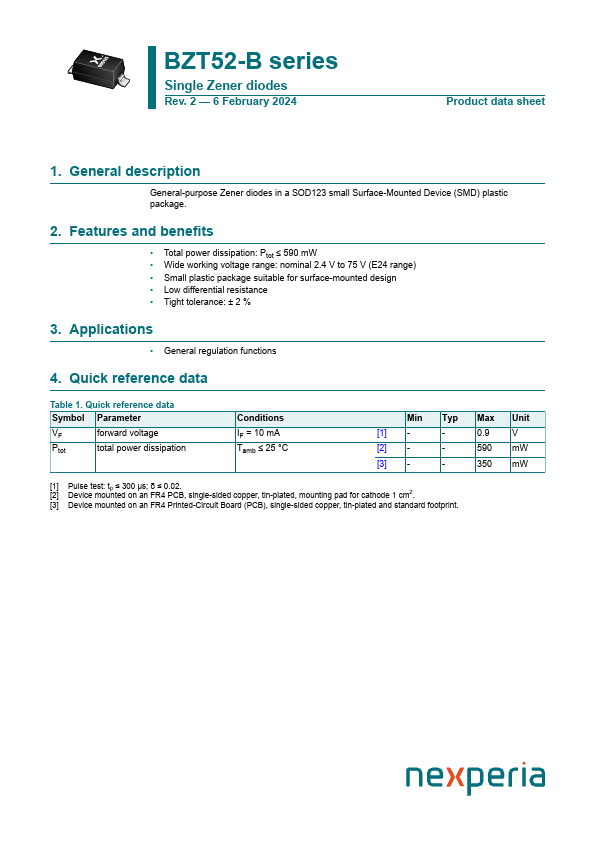

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
BZT52-B4V7, BZT52-B2V4
Manufacturer
nexperia ↗
File Size
206.24 KB
Datasheet
BZT52-B2V4-nexperia.pdf
Description
Single Zener diodes
Note
This datasheet PDF includes multiple part numbers: BZT52-B4V7, BZT52-B2V4.
Please refer to the document for exact specifications by model.
