BUK9Y1R3-40H - N-channel MOSFET

Description

Automotive qualified N-channel MOSFET using the latest Trench 9 low ohmic superjunction technology, housed in a robust LFPAK56 package.

This product has been fully designed and qualified to meet AEC-Q101 requirements delivering high performance and endurance.

2.

Features

  • Fully automotive qualified to AEC-Q101:.
  • 175 °C rating suitable for thermally demanding environments.
  • Trench 9 Superjunction technology:.
  • Reduced cell pitch enables enhanced power density and efficiency with lower RDSon in same footprint.
  • Improved SOA and avalanche capability compared to standard TrenchMOS.
  • Tight VGS(th) limits enable easy paralleling of MOSFETs.
  • LFPAK Gull Wing leads:.
  • High Board Level Reliability absorbin.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
BUK9Y104-100B N-channel TrenchMOS logic level FET NXP Semiconductors
BUK9Y107-80E MOSFET NXP Semiconductors
BUK9Y11-30B N-channel TrenchMOS logic level FET NXP Semiconductors
BUK9Y11-80E N-channel 80V 11m ohm logic level MOSFET NXP Semiconductors
BUK9Y113-100E MOSFET NXP Semiconductors

Other Datasheets by Nexperia

Part Number Description
BUK9Y1R6-40H N-channel MOSFET
BUK9Y1R9-40H N-channel MOSFET
BUK9Y104-100B N-channel MOSFET
BUK9Y107-80E N-channel MOSFET
BUK9Y11-30B N-channel MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

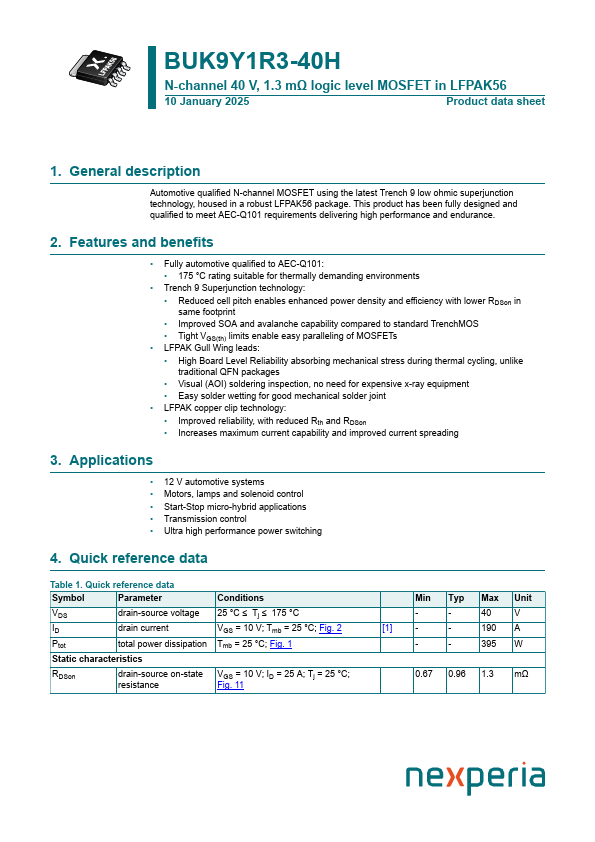

BUK9Y1R3-40H N-channel 40 V, 1.3 mΩ logic level MOSFET in LFPAK56 10 January 2025 Product data sheet 1. General description Automotive qualified N-channel MOSFET using the latest Trench 9 low ohmic superjunction technology, housed in a robust LFPAK56 package. This product has been fully designed and qualified to meet AEC-Q101 requirements delivering high performance and endurance. 2.
