BUK7Y3R0-40H - N-channel 40V MOSFET

nexperia

📥 Download Datasheet

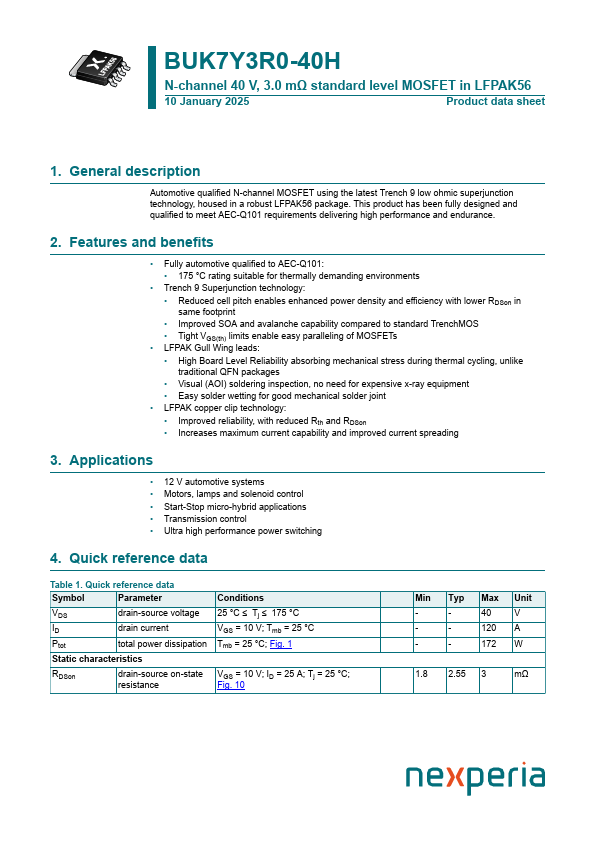

BUK7Y3R0-40H Datasheet Preview — Preview of BUK7Y3R0-40H PDF

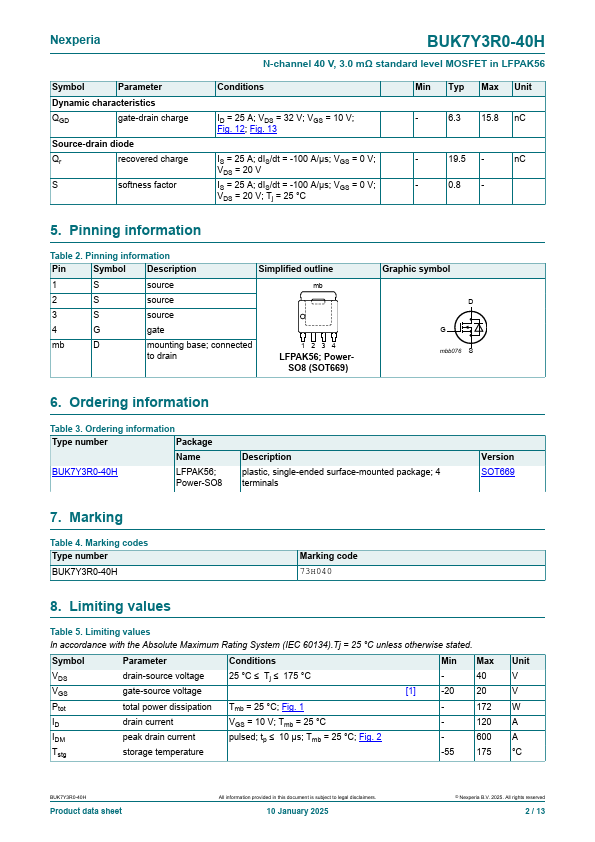

datasheet Preview Page 2

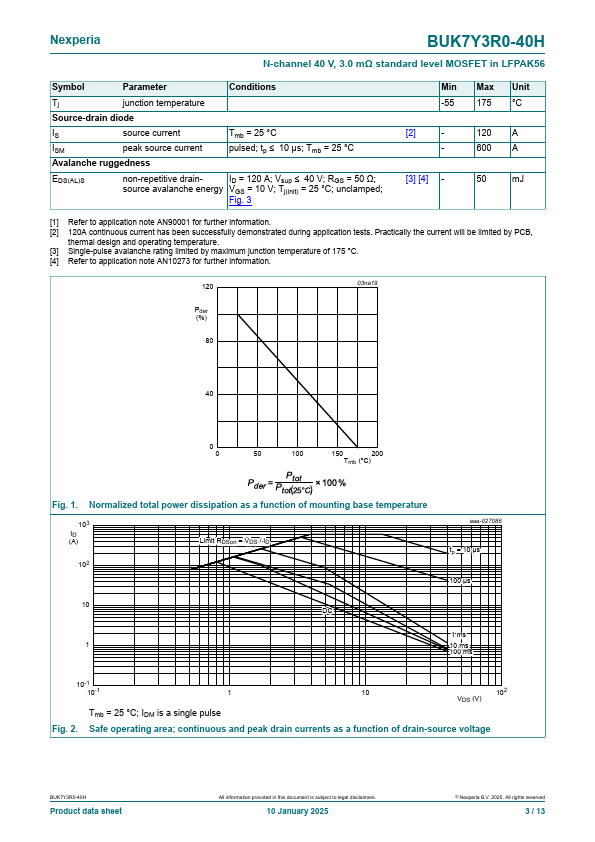

datasheet Preview Page 3

Datasheet Details

Part number	BUK7Y3R0-40H
Manufacturer	nexperia
File Size	295.43 KB
Description	N-channel 40V MOSFET
Datasheet	BUK7Y3R0-40H-nexperia.pdf

BUK7Y3R0-40H Product details

Description

Automotive qualified N-channel MOSFET using the latest Trench 9 low ohmic superjunction technology, housed in a robust LFPAK56 package.

Features

Fully automotive qualified to AEC-Q101:.
175 °C rating suitable for thermally demanding environments.
Trench 9 Superjunction technology:.
Reduced cell pitch enables enhanced power density and efficiency with lower RDSon in same footprint.
Improved SOA and avalanche capability compared to standard TrenchMOS.
Tight VGS(th) limits enable easy paralleling of MOSFETs.
LFPAK Gull Wing leads:.
High Board Level Reliability absorbin.
