BCX71H - 45V 100mA PNP general purpose transistor

BCX71H Description

BCX71H 45 V, 100 mA PNP general purpose transistor 10 July 2025 Product data sheet 1.General .
PNP general-purpose transistor in a small SOT23 Surface-Mounted Device (SMD) plastic package.

BCX71H Features

* Low current (max. 100 mA)
* Low voltage (max. 45 V)
* Low noise

BCX71H Applications

* Low level, low noise, low frequency applications in hybrid circuits
* General purpose switching and amplification 4. Quick reference data Table 1. Quick reference data Symbol Parameter VCEO collector-emitter voltage IC collector current hFE DC current gain Conditions ope

📥 Download Datasheet

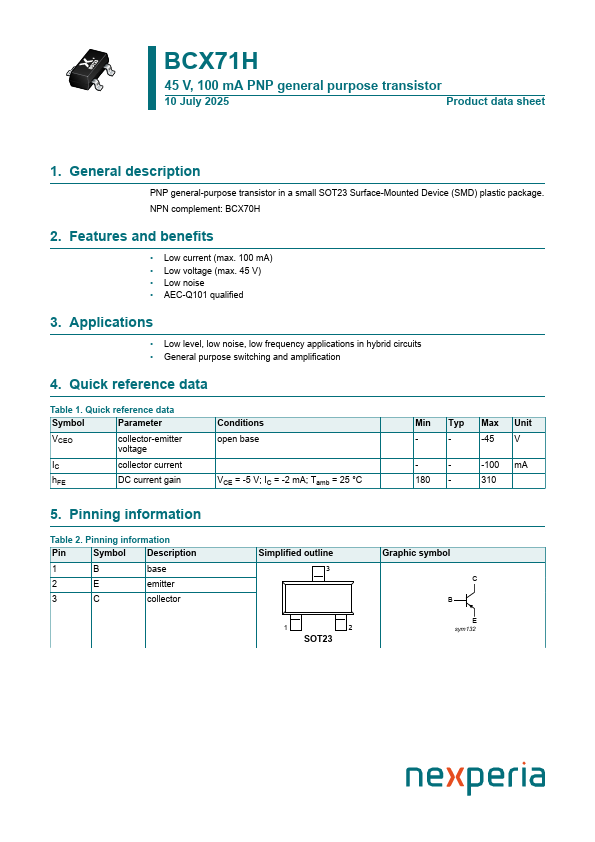

Preview of BCX71H PDF

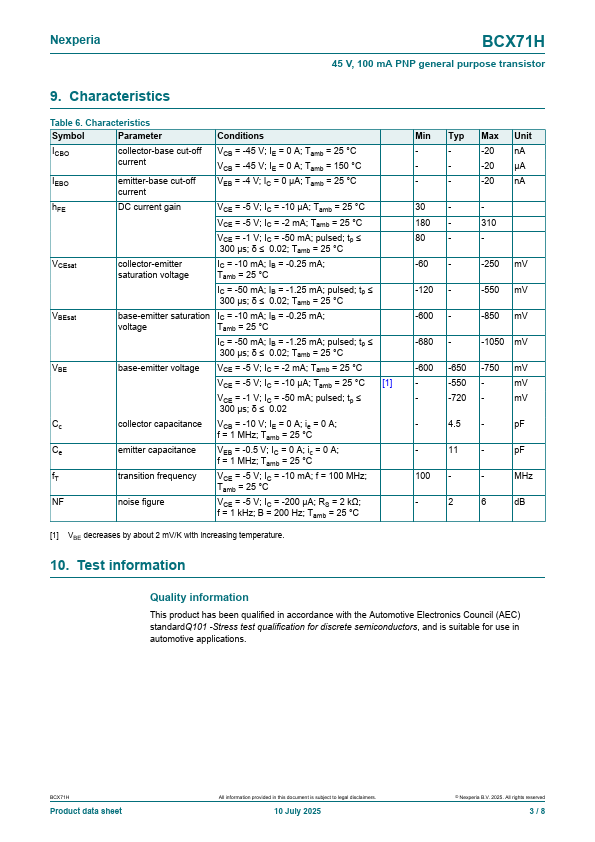

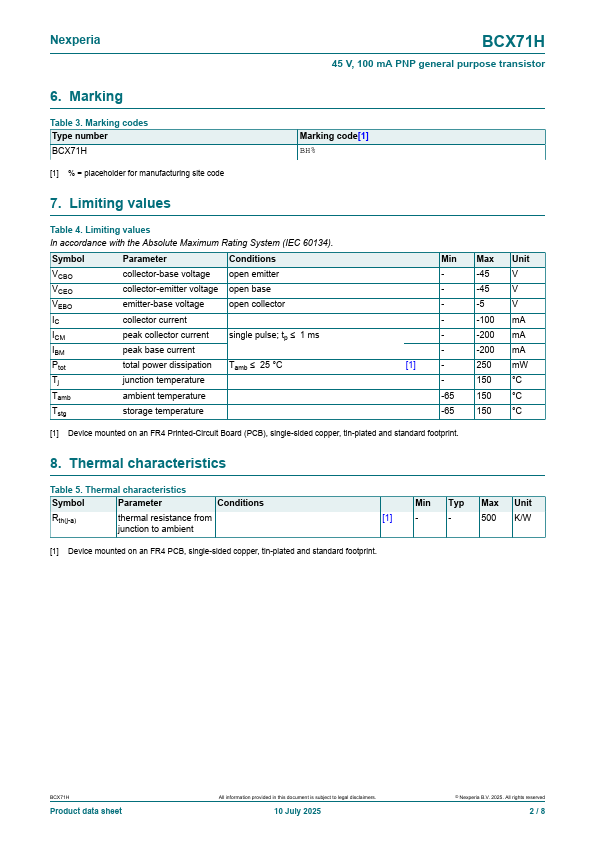

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
BCX71H
Manufacturer
nexperia ↗
File Size
180.08 KB
Datasheet
BCX71H-nexperia.pdf
Description
45V 100mA PNP general purpose transistor
