BCP54-10, BCP54 1A NPN medium power transistors

BCP54-10 Description

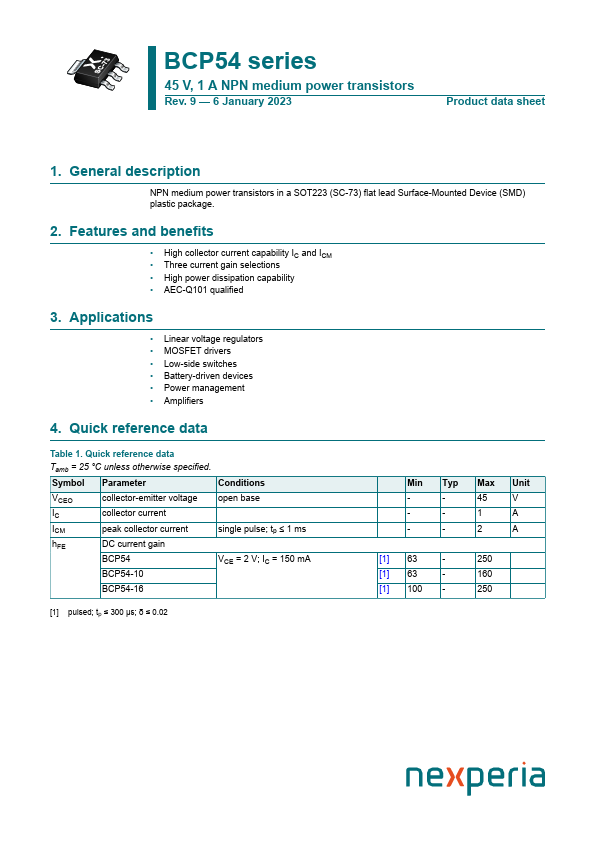

BCP54 series 45 V, 1 A NPN medium power transistors Rev.9 * 6 January 2023 Product data sheet 1.General .
NPN medium power transistors in a SOT223 (SC-73) flat lead Surface-Mounted Device (SMD) plastic package. High coll.

BCP54-10 Features

* High collector current capability IC and ICM
* Three current gain selections
* High power dissipation capability

BCP54-10 Applications

* Linear voltage regulators
* MOSFET drivers
* Low-side switches
* Battery-driven devices
* Power management
* Amplifiers 4. Quick reference data Table 1. Quick reference data Tamb = 25 °C unless otherwise specified. Symbol Parameter Conditions VC

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: BCP54-10, BCP54. Please refer to the document for exact specifications by model.

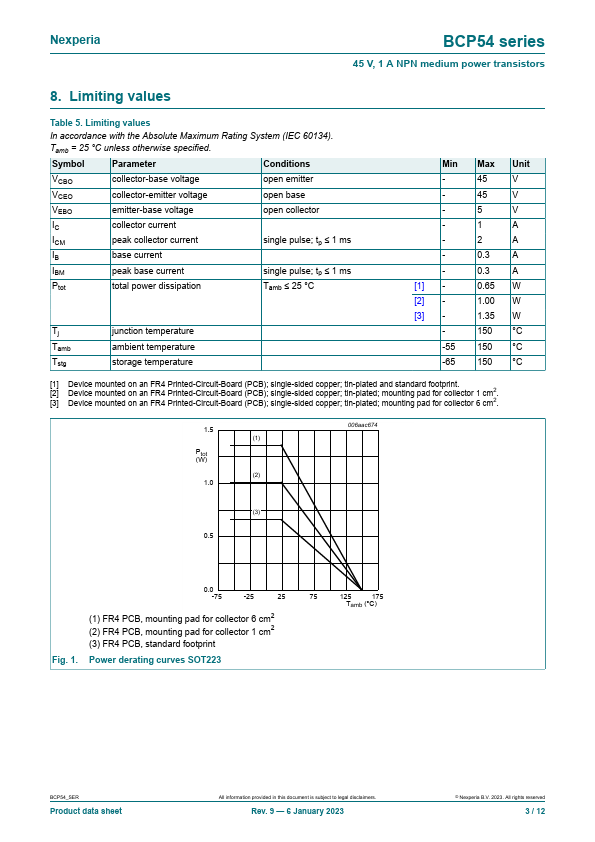

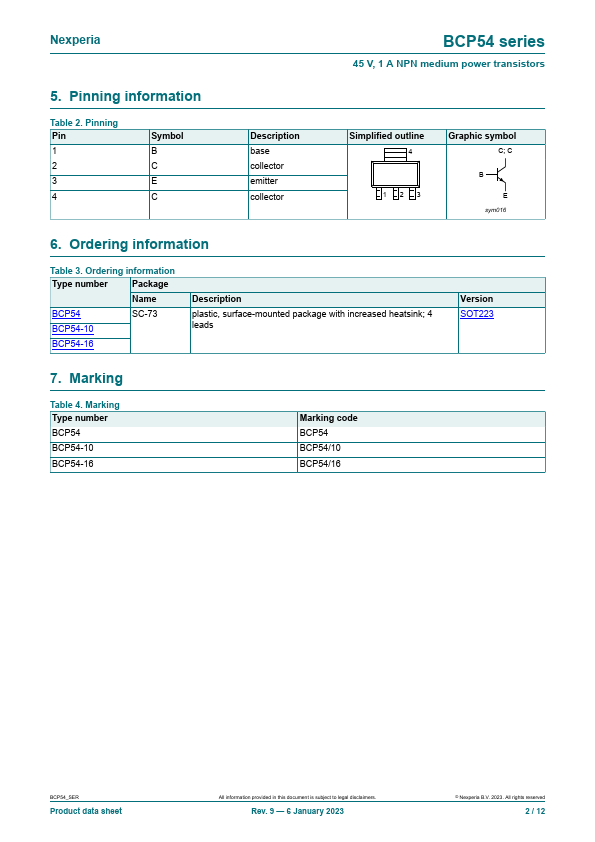

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
BCP54-10, BCP54
Manufacturer
nexperia ↗
File Size
244.41 KB
Datasheet
BCP54-nexperia.pdf
Description
1A NPN medium power transistors
Note
This datasheet PDF includes multiple part numbers: BCP54-10, BCP54.
Please refer to the document for exact specifications by model.
