BCP53H-Q - 80V 1A PNP medium power transistors

Product Overview

nexperia

📥 Download Datasheet

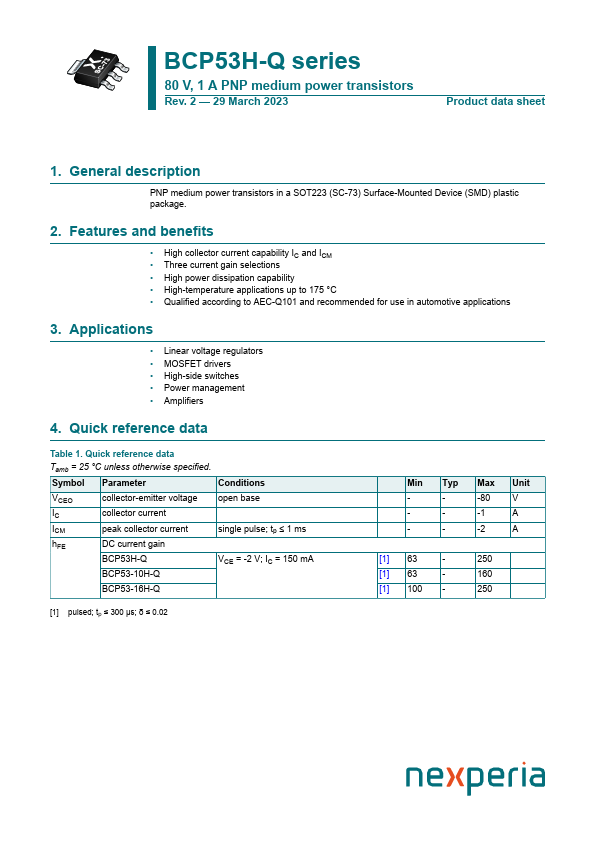

BCP53H-Q 80V 1A PNP medium power transistors by nexperia - Datasheet Preview — Datasheet preview – BCP53H-Q

Datasheet Details

Part number	BCP53H-Q
Manufacturer	nexperia
File Size	269.89 KB
Description	80V 1A PNP medium power transistors
Datasheet	BCP53H-Q Datasheet

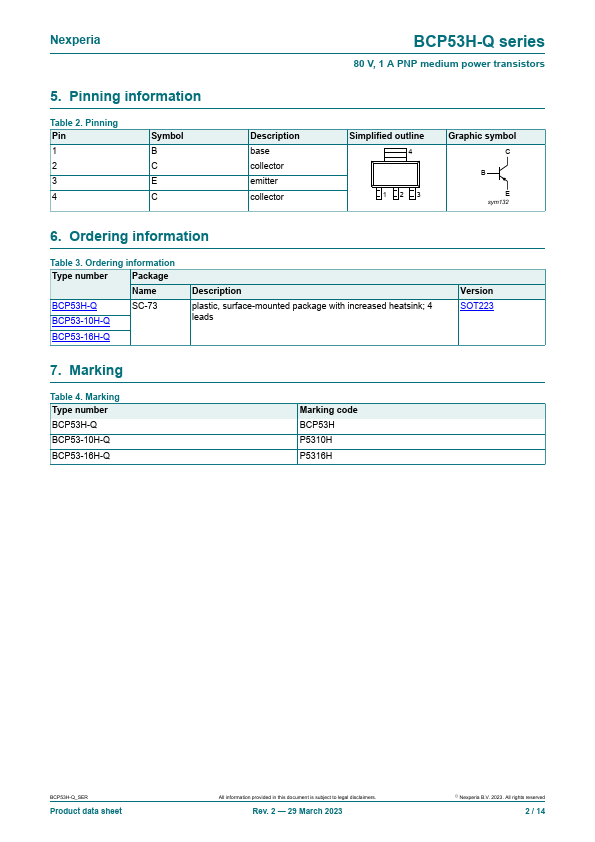

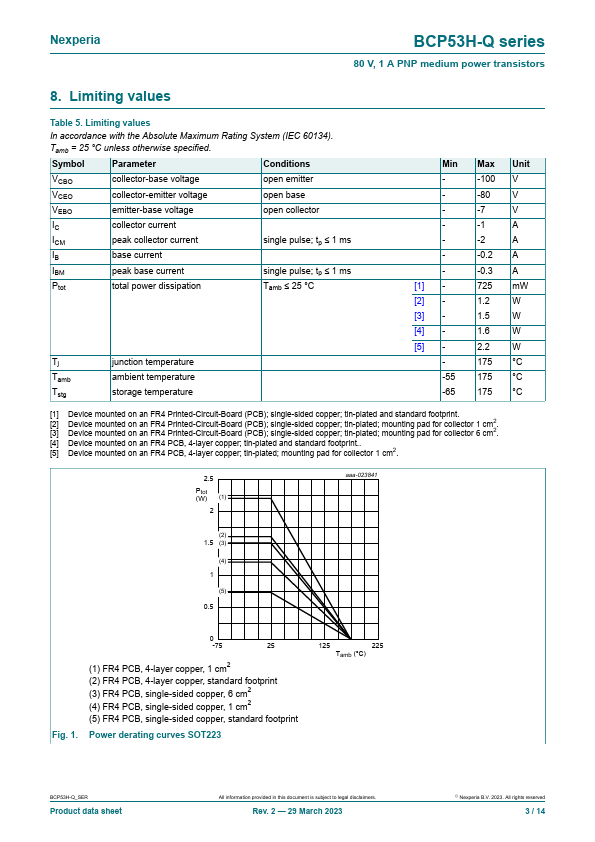

Additional preview pages of the BCP53H-Q datasheet.

Product details

Description

PNP medium power transistors in a SOT223 (SC-73) Surface-Mounted Device (SMD) plastic package.

Features

High collector current capability IC and ICM.
Three current gain selections.
High power dissipation capability.
High-temperature.
