BC857CQB, BC857AQB 100mA PNP general-purpose transistor

BC857CQB Description

BC857xQB series 45 V, 100 mA PNP general-purpose transistor Rev.4 * 20 September 2021 Product data sheet 1.General .
PNP general-purpose transistor in an ultra small DFN1110D-3 (SOT8015) leadless SurfaceMounted Device (SMD) plastic package with side-wettable flanks.

BC857CQB Features

* High power dissipation capability
* Suitable for Automatic Optical Inspection (AOI) of solder joint
* Smaller footprint compared to conventional leaded SMD packages
* Low package height of 0.5 mm

BC857CQB Applications

* General-purpose switching and amplification
* Space restricted applications 4. Quick reference data Table 2. Quick reference data Tamb = 25 °C unless otherwise specified. Symbol Parameter Conditions VCEO IC ICM hFE collector-emitter voltage collector current peak collector cu

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: BC857CQB, BC857AQB. Please refer to the document for exact specifications by model.

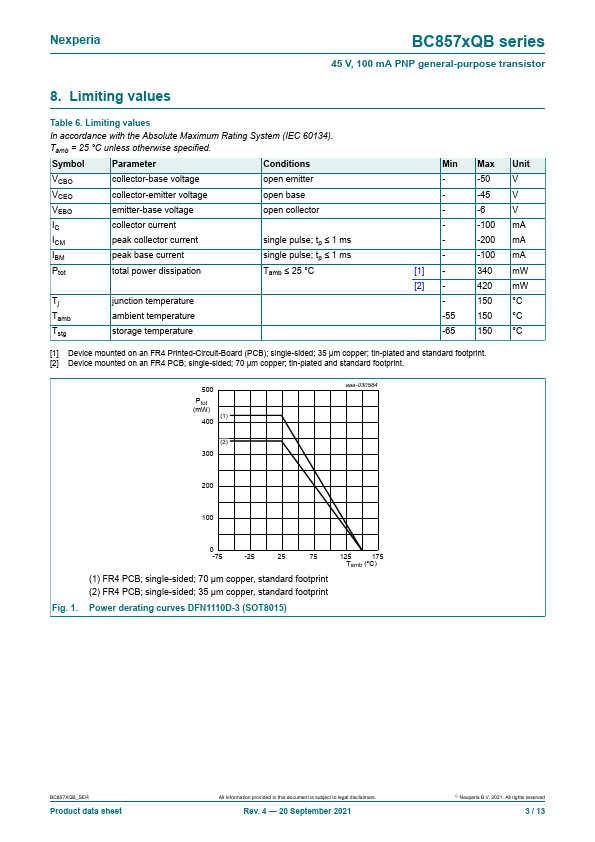

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
BC857CQB, BC857AQB
Manufacturer
nexperia ↗
File Size
239.73 KB
Datasheet
BC857AQB-nexperia.pdf
Description
100mA PNP general-purpose transistor
Note
This datasheet PDF includes multiple part numbers: BC857CQB, BC857AQB.
Please refer to the document for exact specifications by model.
