BC856-Q 100mA PNP transistors

BC856-Q Description

BC856-Q; BC857-Q; BC858-Q 65 V, 100 mA PNP general-purpose transistors Rev.2 * 21 February 2022 Product data sheet 1.General .
PNP general-purpose transistors in a small SOT23 (TO-236AB), Surface-Mounted Device (SMD) plastic package.

BC856-Q Features

* Low current (max. 100 mA)
* Low voltage (max. 65 V)

BC856-Q Applications

* 3. Applications
* General-purpose switching and amplification Nexperia BC856-Q; BC857-Q; BC858-Q 65 V, 100 mA PNP general-purpose transistors 4. Quick reference data Table 2. Quick reference data Tamb = 25 °C unless otherwise specified. Symbol Parameter VCEO collector-emitter voltage

📥 Download Datasheet

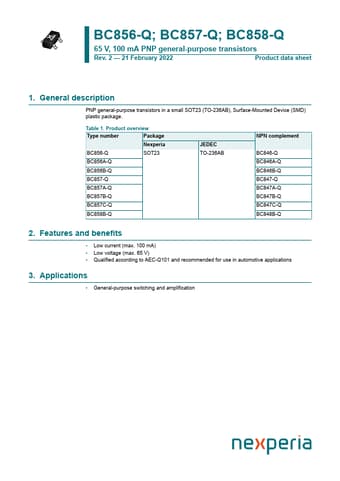

Preview of BC856-Q PDF
datasheet Preview Page 2 datasheet Preview Page 3
