BC847BPN 100mA NPN/PNP general-purpose transistor

BC847BPN Description

BC847BPN 45 V, 100 mA NPN/PNP general-purpose transistor 1 July 2022 Product data sheet 1.General .
NPN/PNP general-purpose transistor pair in a very small SOT363 (SC-88) Surface-Mounted Device (SMD) plastic package.

BC847BPN Features

* Low collector capacitance
* Low collector-emitter saturation voltage
* Closely matched current gain
* Reduces number of components and board space

BC847BPN Applications

* General-purpose switching and amplification 4. Quick reference data Table 1. Quick reference data Symbol Parameter Conditions Per transistor; for the PNP transistor with negative polarity VCEO collector-emitter voltage open base IC collector current hFE DC current gain VCE =

📥 Download Datasheet

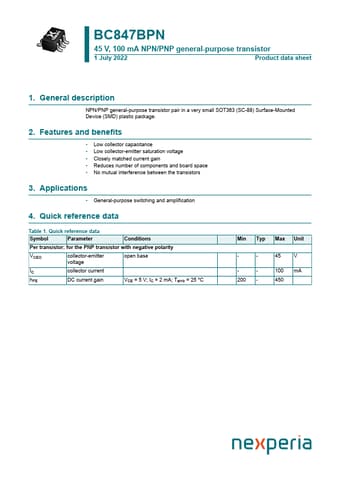

Preview of BC847BPN PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
BC847BPN
Manufacturer
nexperia ↗
File Size
260.05 KB
Datasheet
BC847BPN-nexperia.pdf
Description
100mA NPN/PNP general-purpose transistor
