BC56-16PAS, BC56PAS - 80V 1A NPN medium power transistors

nexperia

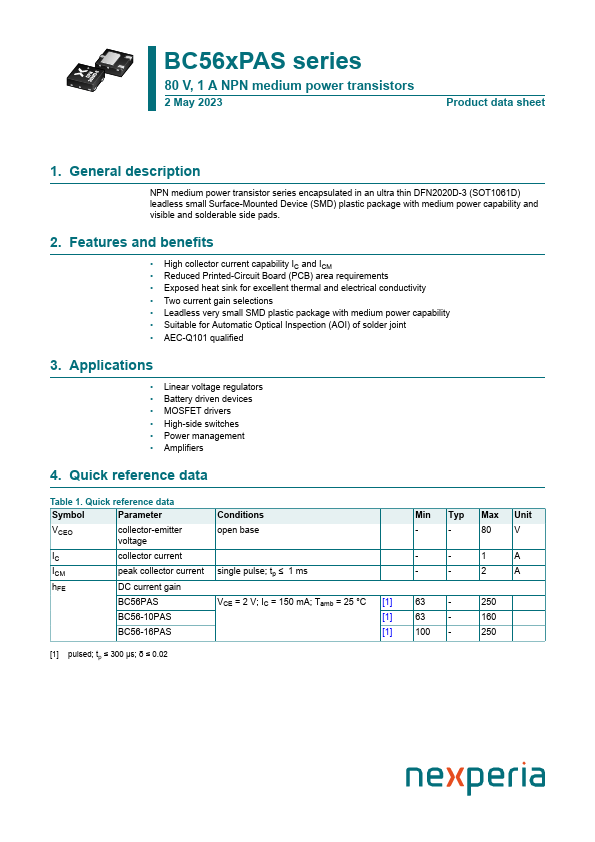

BC56-16PAS Datasheet Preview — This datasheet PDF includes multiple part numbers: BC56-16PAS, BC56PAS. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	BC56-16PAS, BC56PAS
Manufacturer	nexperia ↗
File Size	251.36 KB
Description	80V 1A NPN medium power transistors
Datasheet	BC56PAS-nexperia.pdf
Note	This datasheet PDF includes multiple part numbers: BC56-16PAS, BC56PAS. Please refer to the document for exact specifications by model.

BC56-16PAS Product details

Description

NPN medium power transistor series encapsulated in an ultra thin DFN2020D-3 (SOT1061D) leadless small Surface-Mounted Device (SMD) plastic package with medium power capability and visible and solderable side pads.

Features

High collector current capability IC and ICM.
Reduced Printed-Circuit Board (PCB) area requirements.
Exposed heat sink for excellent thermal and electrical conductivity.
Two current gain selections.
Leadless very small SMD plastic package with medium power capability.
Suitable for Automatic Optical Inspection (AOI) of solder joint.
AEC-Q101 qualified 3.
