BAV70S-Q - High-speed switching double diode

nexperia

The BAV70S-Q by nexperia is a High-speed switching double diode. Below is the official datasheet preview.

📥 Download Datasheet

BAV70S-Q High-speed switching double diode by nexperia - Datasheet Preview — Official preview page of the BAV70S-Q High-speed switching double diode datasheet (nexperia).

Datasheet Details

Part number	BAV70S-Q
Manufacturer	nexperia
File Size	208.85 KB
Description	High-speed switching double diode
Datasheet	BAV70S-Q-nexperia.pdf

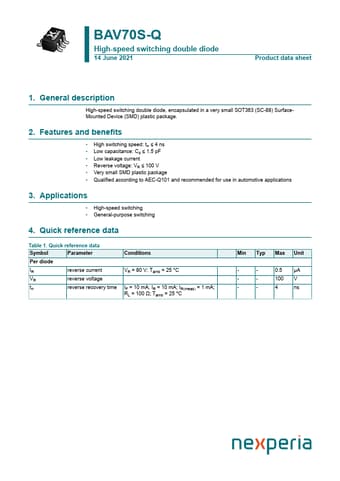

Additional preview pages of the BAV70S-Q datasheet.

BAV70S-Q Product details

Description

High-speed switching double diode, encapsulated in a very small SOT363 (SC-88) SurfaceMounted Device (SMD) plastic package.

Features

High switching speed: trr ≤ 4 ns.
Low capacitance: Cd ≤ 1.5 pF.
Low leakage current.
Reverse voltage: VR ≤ 100 V.
Very small SMD plastic package.
Qualified according to AEC-Q101 and recommended for use in automotive.
