BAV170QA - Dual common cathode low-leakage diode

Name: BAV170QA
SKU: BAV170QA-1393753

nexperia

📥 Download Datasheet

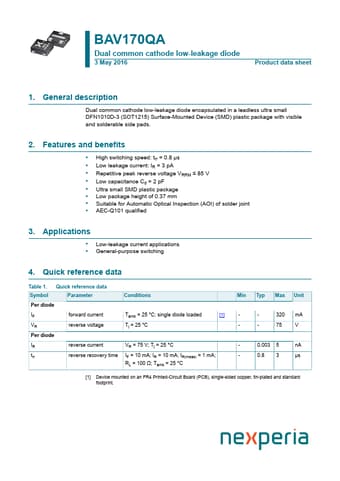

BAV170QA Datasheet Preview — Preview of BAV170QA PDF

Datasheet Details

Part number	BAV170QA
Manufacturer	nexperia
File Size	676.90 KB
Description	Dual common cathode low-leakage diode
Datasheet	BAV170QA-nexperia.pdf

BAV170QA Product details

Description

Dual common cathode low-leakage diode encapsulated in a leadless ultra small DFN1010D-3 (SOT1215) Surface-Mounted Device (SMD) plastic package with visible and solderable side pads.

Features

High switching speed: trr = 0.8 µs.
Low leakage current: IR = 3 pA.
Repetitive peak reverse voltage VRRM ≤ 85 V.
Low capacitance Cd = 2 pF.
Ultra small SMD plastic package.
Low package height of 0.37 mm.
Suitable for Automatic Optical Inspection (AOI) of solder joint.
AEC-Q101 qualified 3.
