BAT165A Schottky barrier rectifier

BAT165A Description

BAT165A 40 V, 0.75 A medium power Schottky barrier rectifier 2 May 2016 Product data sheet 1.General .
Medium power Schottky barrier rectifier with an integrated guard ring for stress protection, encapsulated in a very small SOD323 (SC-76) Surface-Mount.

BAT165A Features

* Forward current: IF ≤ 0.75 A
* Reverse voltage: VR ≤ 40 V
* Low forward voltage typ. VF = 640 mV
* Low reverse current typ. IR = 1.5 µA
* Very small SMD plastic package

BAT165A Applications

* Low voltage rectification
* High efficiency DC-to-DC conversion
* Switch mode power supply
* Reverse polarity protection
* Low power consumption application
* Automotive applications Table 1. Symbol IF VR VF Quick reference data Parameter forward

📥 Download Datasheet

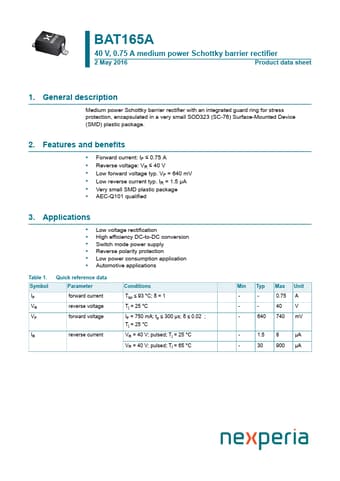

Preview of BAT165A PDF
datasheet Preview Page 2 datasheet Preview Page 3
