BAS35 General purpose switching diode

BAS35 Description

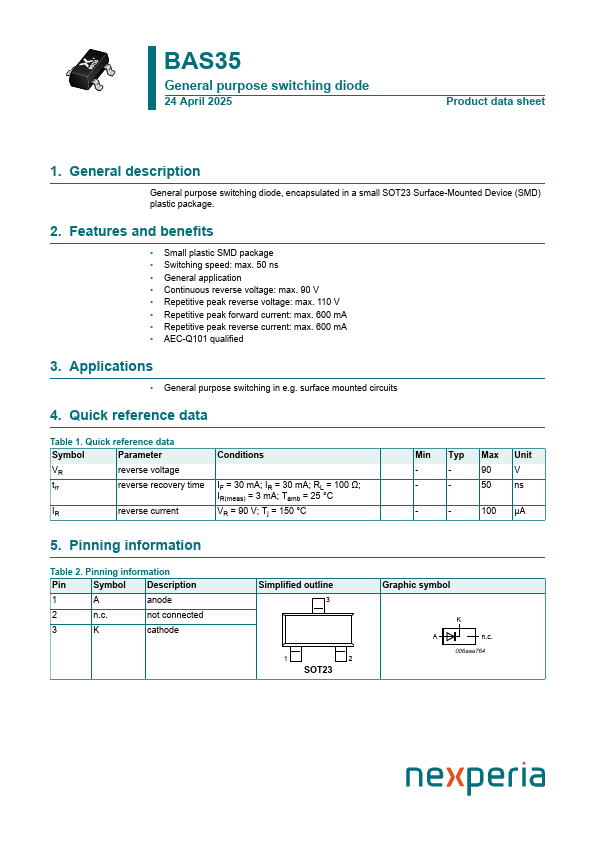

BAS35 General purpose switching diode 24 April 2025 Product data sheet 1.General .
General purpose switching diode, encapsulated in a small SOT23 Surface-Mounted Device (SMD) plastic package. Small.

BAS35 Features

* Small plastic SMD package
* Switching speed: max. 50 ns

BAS35 Applications

* General purpose switching in e. g. surface mounted circuits 4. Quick reference data Table 1. Quick reference data Symbol Parameter VR reverse voltage trr reverse recovery time IR reverse current Conditions IF = 30 mA; IR = 30 mA; RL = 100 Ω; IR(meas) = 3 mA; Tamb = 25 °C VR = 90

📥 Download Datasheet

Preview of BAS35 PDF

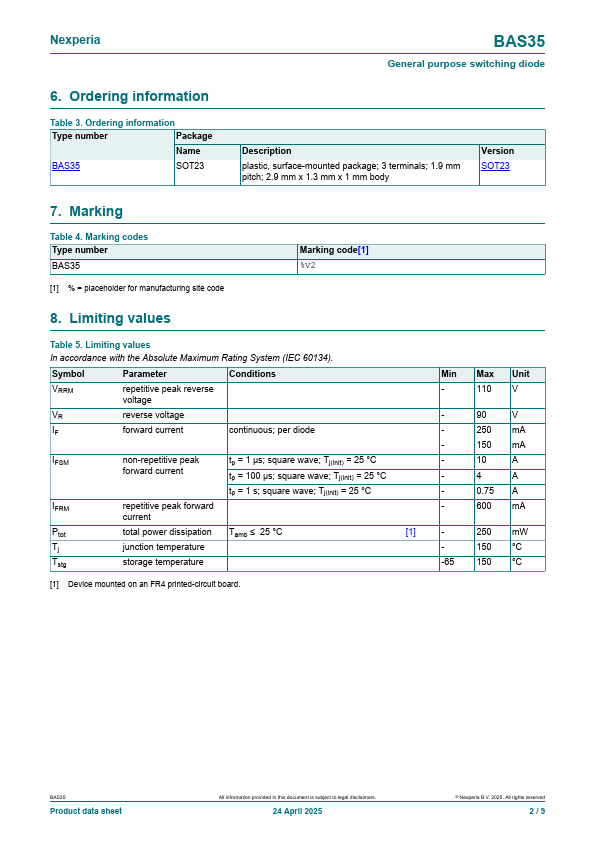

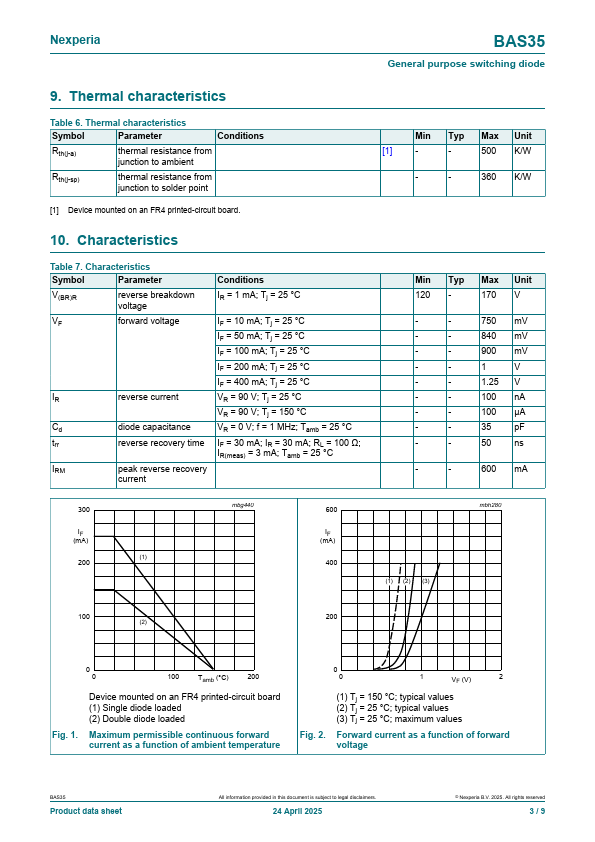

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
BAS35
Manufacturer
nexperia ↗
File Size
185.74 KB
Datasheet
BAS35-nexperia.pdf
Description
General purpose switching diode
