74VHC541 - Octal buffer/line driver

nexperia

The 74VHC541 by nexperia is a Octal buffer/line driver. Below is the official datasheet preview.

📥 Download Datasheet

74VHC541 Octal buffer/line driver by nexperia - Datasheet Preview — Official preview page of the 74VHC541 Octal buffer/line driver datasheet (nexperia).

Datasheet Details

Part number	74VHC541
Manufacturer	nexperia
File Size	259.19 KB
Description	Octal buffer/line driver
Datasheet	74VHC541-nexperia.pdf

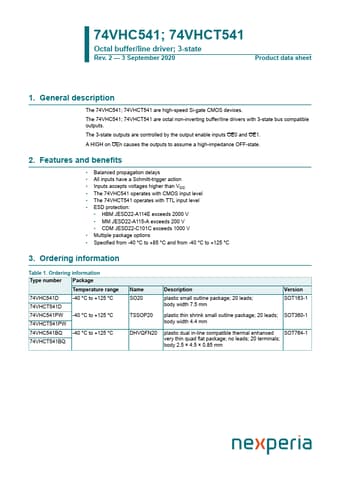

Additional preview pages of the 74VHC541 datasheet.

74VHC541 Product details

Description

The 74VHC541; 74VHCT541 are high-speed Si-gate CMOS devices.

Features

Balanced propagation delays.
All inputs have a Schmitt-trigger action.
Inputs accepts voltages higher than VCC.
The 74VHC541 operates with CMOS input level.
The 74VHCT541 operates with TTL input level.
ESD protection:.
HBM JESD22-A114E exceeds 2000 V.
MM JESD22-A115-A exceeds 200 V.
CDM JESD22-C101C exceeds 1000 V.
Multiple package options.
Specified from -40 °C to +85 °C and from -40 °C to +125 °.
