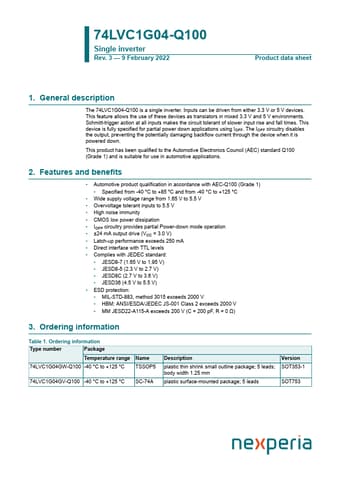

74LVC1G04-Q100 Datasheet Preview — Preview of 74LVC1G04-Q100 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	74LVC1G04-Q100
Manufacturer	nexperia
File Size	208.00 KB
Description	Single inverter
Datasheet	74LVC1G04-Q100-nexperia.pdf

74LVC1G04-Q100 Product details

Description

The 74LVC1G04-Q100 is a single inverter.

Features

Automotive product qualification in accordance with AEC-Q100 (Grade 1).
Specified from -40 °C to +85 °C and from -40 °C to +125 °C.
Wide supply voltage range from 1.65 V to 5.5 V.
Overvoltage tolerant inputs to 5.5 V.
High noise immunity.
CMOS low power dissipation.
IOFF circuitry provides partial Power-down mode operation.
±24 mA output drive (VCC = 3.0 V).
Latch-up performance exceeds 250 mA.
Direct inte.
