74LVC07APW, 74LVC07A - Hex buffer

nexperia

📥 Download Datasheet

74LVC07APW Datasheet Preview — This datasheet PDF includes multiple part numbers: 74LVC07APW, 74LVC07A. Please refer to the document for exact specifications by model.

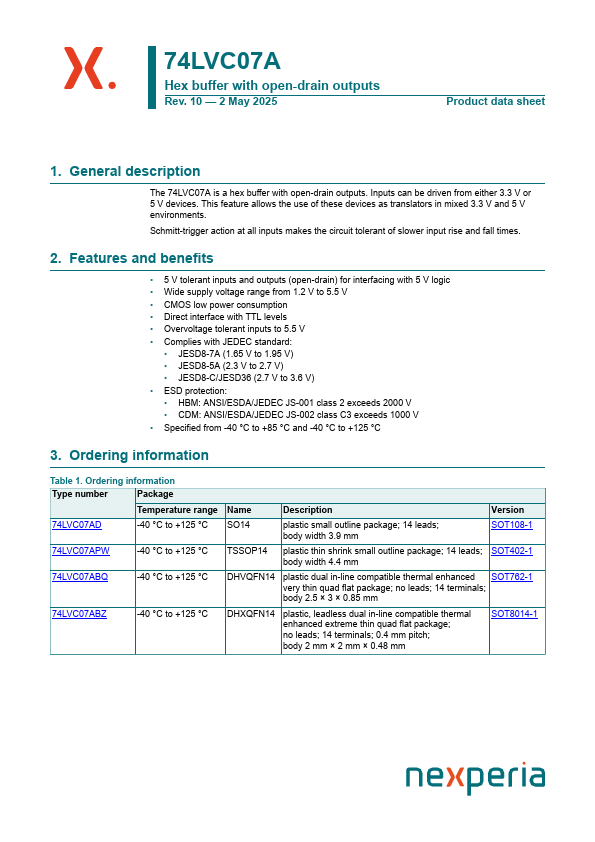

datasheet Preview Page 2

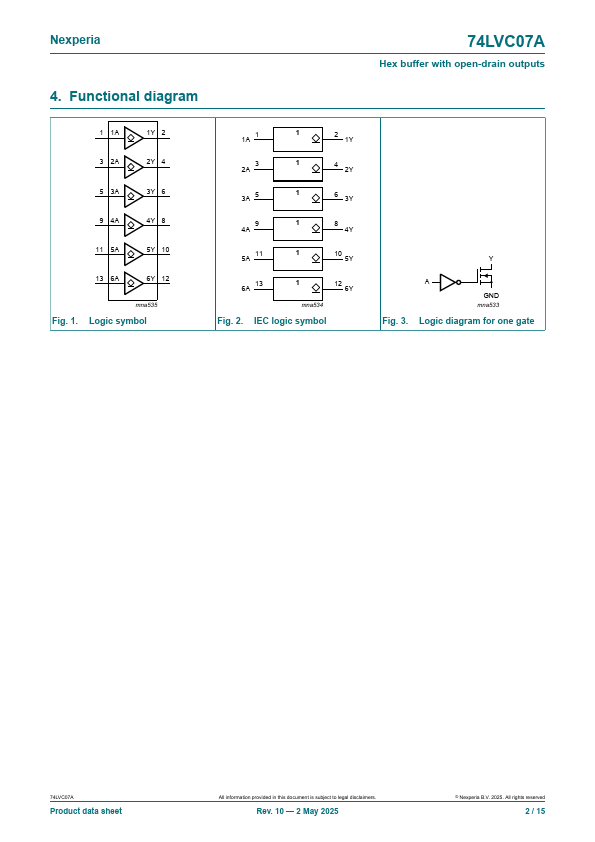

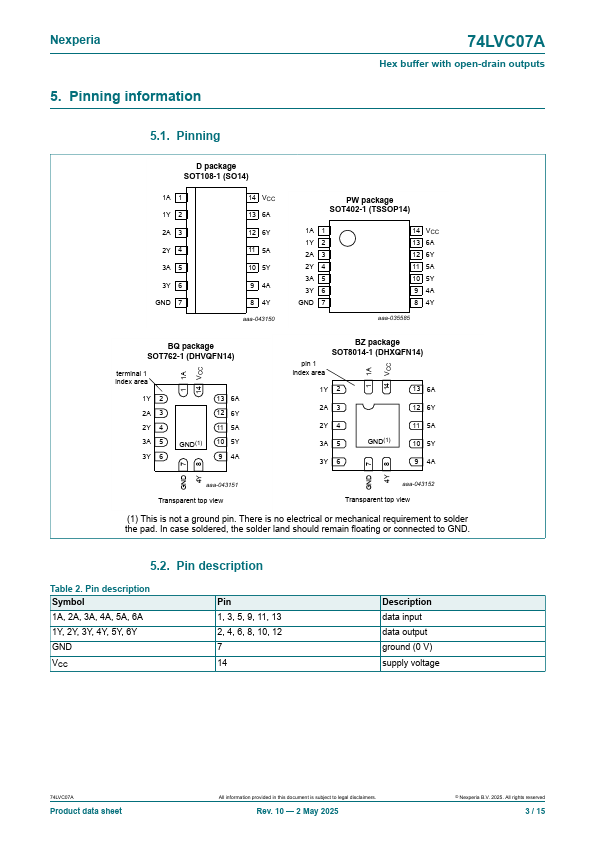

datasheet Preview Page 3

Datasheet Details

Part number	74LVC07APW, 74LVC07A
Manufacturer	nexperia
File Size	257.69 KB
Description	Hex buffer
Datasheet	74LVC07A-nexperia.pdf
Note	This datasheet PDF includes multiple part numbers: 74LVC07APW, 74LVC07A. Please refer to the document for exact specifications by model.

74LVC07APW Product details

Description

The 74LVC07A is a hex buffer with open-drain outputs.

Features

5 V tolerant inputs and outputs (open-drain) for interfacing with 5 V logic.
Wide supply voltage range from 1.2 V to 5.5 V.
CMOS low power consumption.
Direct interface with TTL levels.
Overvoltage tolerant inputs to 5.5 V.
Complies with JEDEC standard:.
JESD8-7A (1.65 V to 1.95 V).
JESD8-5A (2.3 V to 2.7 V).
JESD8-C/JESD36 (2.7 V to 3.6 V).
ESD protection:.
HBM: ANSI/ESDA/JEDEC JS-001 class 2 exc.
