74HCT541, 74HC541 - Octal buffer/line driver

nexperia

The 74HCT541 by nexperia is a Octal buffer/line driver. Below is the official datasheet preview.

📥 Download Datasheet

74HCT541 Octal buffer/line driver by nexperia - Datasheet Preview — Official preview page of the 74HCT541 Octal buffer/line driver datasheet (nexperia).

Datasheet Details

Part number	74HCT541, 74HC541
Manufacturer	nexperia
File Size	246.85 KB
Description	Octal buffer/line driver
Datasheet	74HC541-nexperia.pdf
Note	This datasheet PDF includes multiple part numbers: 74HCT541, 74HC541. Please refer to the document for exact specifications by model.

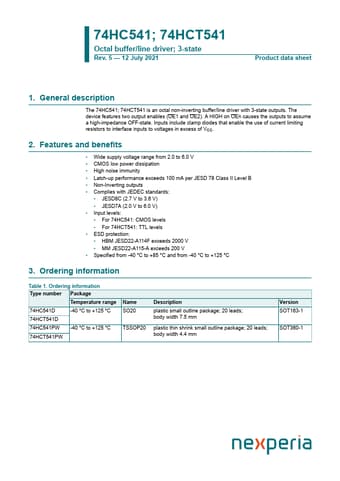

Additional preview pages of the 74HCT541 datasheet.

74HCT541 Product details

Description

The 74HC541; 74HCT541 is an octal non-inverting buffer/line driver with 3-state outputs.

Features

Wide supply voltage range from 2.0 to 6.0 V.
CMOS low power dissipation.
High noise immunity.
Latch-up performance exceeds 100 mA per JESD 78 Class II Level B.
Non-Inverting outputs.
Complies with JEDEC standards:.
JESD8C (2.7 V to 3.6 V).
JESD7A (2.0 V to 6.0 V).
Input levels:.
For 74HC541: CMOS levels.
For 74HCT541: TTL levels.
ESD protection:.
HBM JESD22-A114F exceeds 2000 V.
