74HCT125-Q100, 74HC125-Q100 Quad buffer/line driver

74HCT125-Q100 Description

74HC125-Q100; 74HCT125-Q100 Quad buffer/line driver; 3-state Rev.3 * 4 February 2021 Product data sheet 1.General .
The 74HC125-Q100; 74HCT125-Q100 is a quad buffer/line driver with 3-state outputs controlled by the output enable inputs (nOE).

74HCT125-Q100 Features

* Automotive product qualification in accordance with AEC-Q100 (Grade 1)
* Specified from -40 °C to +85 °C and from -40 °C to +125 °C
* Wide supply voltage range from 2.0 to 6.0 V
* CMOS low power dissipation
* High noise immunity
* Latch-up performanc

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: 74HCT125-Q100, 74HC125-Q100. Please refer to the document for exact specifications by model.

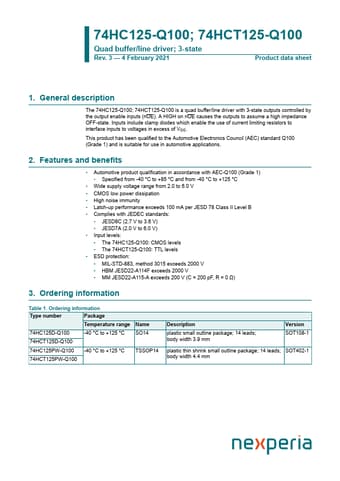

datasheet Preview Page 2 datasheet Preview Page 3
