74HCT00D, 74HC00 - Quad 2-input NAND gate

nexperia

The 74HCT00D by nexperia is a Quad 2-input NAND gate. Below is the official datasheet preview.

📥 Download Datasheet

74HCT00D Quad 2-input NAND gate by nexperia - Datasheet Preview — Official preview page of the 74HCT00D Quad 2-input NAND gate datasheet (nexperia).

Datasheet Details

Part number	74HCT00D, 74HC00
Manufacturer	nexperia
File Size	263.27 KB
Description	Quad 2-input NAND gate
Datasheet	74HC00-nexperia.pdf
Note	This datasheet PDF includes multiple part numbers: 74HCT00D, 74HC00. Please refer to the document for exact specifications by model.

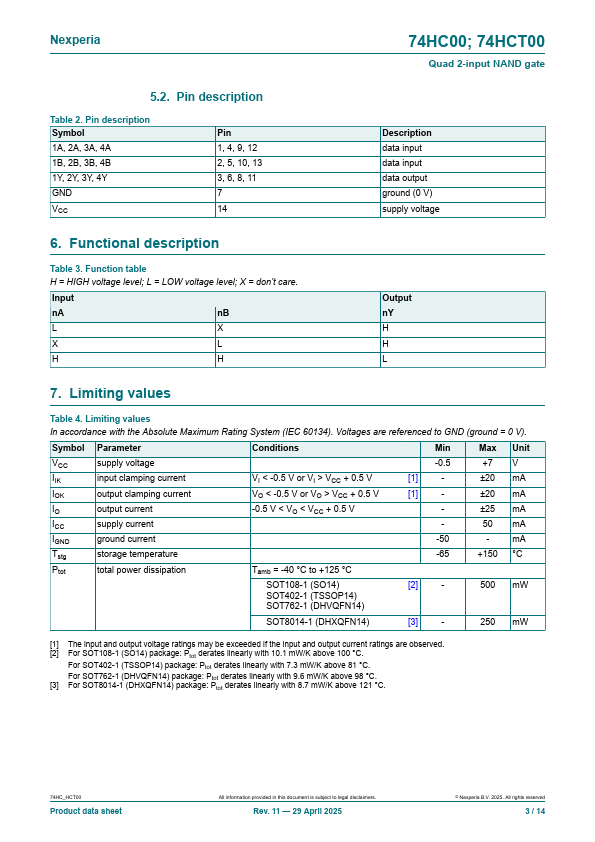

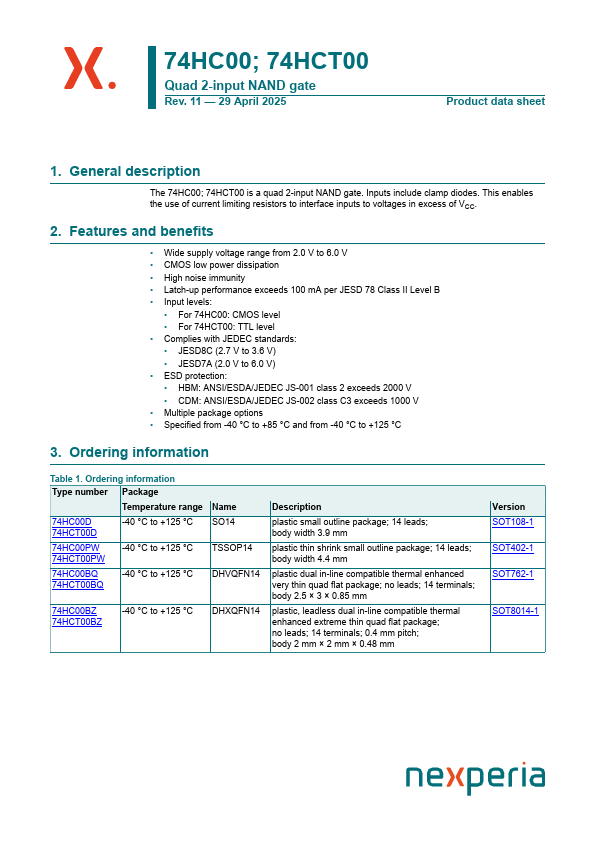

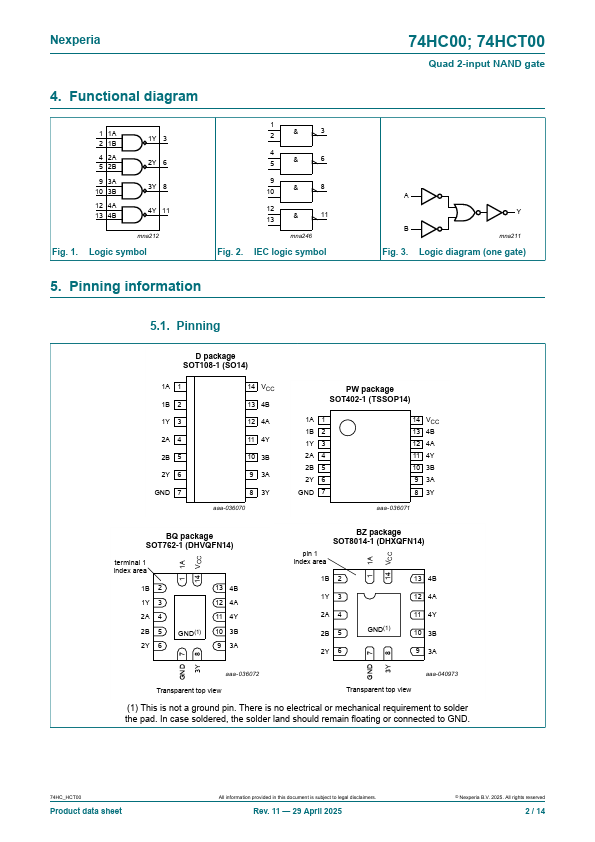

Additional preview pages of the 74HCT00D datasheet.

74HCT00D Product details

Description

The 74HC00; 74HCT00 is a quad 2-input NAND gate.

Features

Wide supply voltage range from 2.0 V to 6.0 V.
CMOS low power dissipation.
High noise immunity.
Latch-up performance exceeds 100 mA per JESD 78 Class II Level B.
Input levels:.
For 74HC00: CMOS level.
For 74HCT00: TTL level.
Complies with JEDEC standards:.
JESD8C (2.7 V to 3.6 V).
JESD7A (2.0 V to 6.0 V).
ESD protection:.
HBM: ANSI/ESDA/JEDEC JS-001 class 2 exceeds 2000 V.
CDM: A.
