74HC4051 - 8-channel analog multiplexer/demultiplexer

General Description

The 74HC4051; 74HCT4051 is a single-pole octal-throw analog switch (SP8T) suitable for use in analog or digital 8:1 multiplexer/demultiplexer applications.

Key Features

  • Wide analog input voltage range from -5 V to +5 V.
  • CMOS low power dissipation.
  • High noise immunity.
  • Complies with JEDEC standards.
  • JESD8C (2.7 V to 3.6 V).
  • JESD7A (2.0 V to 6.0 V).
  • Latch-up performance exceeds 100 mA per JESD 78 Class II Level B.
  • Low ON resistance:.
  • 80 Ω (typical) at VCC - VEE = 4.5 V.
  • 70 Ω (typical) at VCC - VEE = 6.0 V.
  • 60 Ω (typical) at VCC - VEE = 9.0 V.
  • Logic level t.

📥 Download Datasheet

Datasheet Details

Part number 74HC4051
Manufacturer Nexperia
File Size 394.83 KB
Description 8-channel analog multiplexer/demultiplexer
Datasheet download datasheet 74HC4051 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
74HC4051 8-channel analog multiplexer/demultiplexer NXP
74HC4051-Q100 8-channel analog multiplexer/demultiplexer NXP
74HC4051A Analog Multiplexers/Demultiplexers Motorola
74HC4051D 8-Channel Analog Multiplexer/Demultiplexer Toshiba
74HC4051FT 8-Channel Analog Multiplexer/Demultiplexer Toshiba

Other Datasheets by Nexperia

Part Number Description
74HC4051-Q100 8-channel analog multiplexer/demultiplexer
74HC4051D 8-channel analog multiplexer/demultiplexer
74HC4050 Hex non-inverting HIGH-to-LOW level shifter
74HC4050-Q100 Hex non-inverting HIGH-to-LOW level shifter
74HC4050D Hex non-inverting HIGH-to-LOW level shifter

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

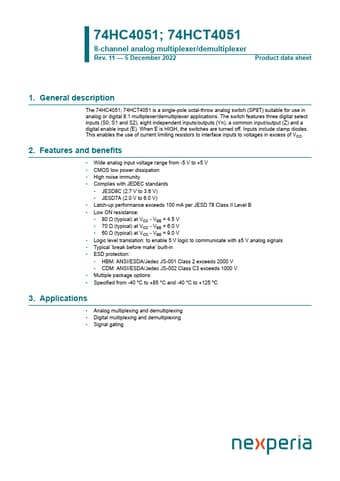

74HC4051; 74HCT4051 8-channel analog multiplexer/demultiplexer Rev. 11 — 5 December 2022 Product data sheet 1. General description The 74HC4051; 74HCT4051 is a single-pole octal-throw analog switch (SP8T) suitable for use in analog or digital 8:1 multiplexer/demultiplexer applications. The switch features three digital select inputs (S0, S1 and S2), eight independent inputs/outputs (Yn), a common input/output (Z) and a digital enable input (E). When E is HIGH, the switches are turned off. Inputs include clamp diodes. This enables the use of current limiting resistors to interface inputs to voltages in excess of VCC. 2. Features and benefits • Wide analog input voltage range from -5 V to +5 V • CMOS low power dissipation • High noise immunity • Complies with JEDEC standards • JESD8C (2.
