74HC3G07DC - Triple buffer

Download the 74HC3G07DC datasheet PDF. This datasheet also covers the 74HC3G07 variant, as both devices belong to the same triple buffer family and are provided as variant models within a single manufacturer datasheet.

Description

The 74HC3G07; 74HCT3G07 is a triple buffer with open-drain outputs.

Inputs include clamp diodes.

This enables the use of current limiting resistors to interface inputs to voltages in excess of VCC.

Features

  • Wide supply voltage range from 2.0 V to 6.0 V.
  • Input levels:.
  • For 74HC3G07: CMOS level.
  • For 74HCT3G07: TTL level.
  • CMOS low power dissipation.
  • High noise immunity.
  • Latch-up performance exceeds 100 mA per JESD 78 Class II Level B.
  • Complies with JEDEC standards.
  • JESD8C (2.7 V to 3.6 V).
  • JESD7A (2.0 V to 6.0 V).
  • ESD protection:.
  • HBM: ANSI/ESDA/JEDEC JS-001 class 2 exceeds 2000 V.
  • CDM.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (74HC3G07-nexperia.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

Part Number Description Manufacturer
74HC3G07 Buffer NXP
74HC3G04 Inverter NXP
74HC3G06 Triple inverter NXP
74HC3G34 Triple Buffer Gate NXP
74HC3GU04 Inverter NXP

Other Datasheets by Nexperia

Part Number Description
74HC3G07DP Triple buffer
74HC3G07 Triple buffer
74HC3G07-Q100 Triple buffer
74HC3G04 Triple inverter
74HC3G04-Q100 Triple inverter

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

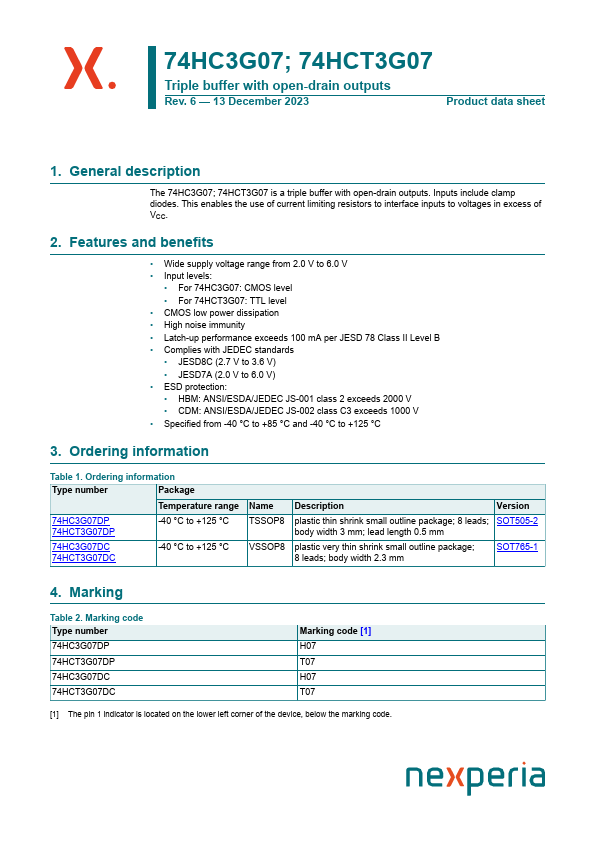

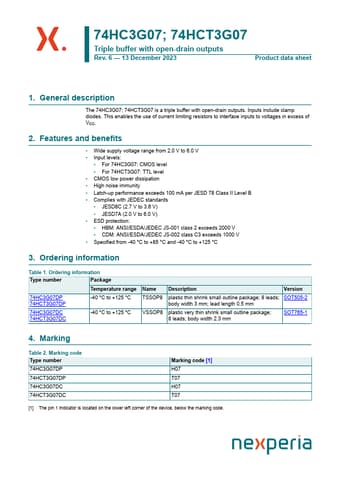

74HC3G07; 74HCT3G07 Triple buffer with open-drain outputs Rev. 6 — 13 December 2023 Product data sheet 1. General description The 74HC3G07; 74HCT3G07 is a triple buffer with open-drain outputs. Inputs include clamp diodes. This enables the use of current limiting resistors to interface inputs to voltages in excess of VCC. 2. Features and benefits • Wide supply voltage range from 2.0 V to 6.0 V • Input levels: • For 74HC3G07: CMOS level • For 74HCT3G07: TTL level • CMOS low power dissipation • High noise immunity • Latch-up performance exceeds 100 mA per JESD 78 Class II Level B • Complies with JEDEC standards • JESD8C (2.7 V to 3.6 V) • JESD7A (2.0 V to 6.
