74HC367 Hex buffer/line driver

74HC367 Description

74HC367; 74HCT367 Hex buffer/line driver; 3-state Rev.4 * 24 February 2021 Product data sheet 1.General .
The 74HC367; 74HCT367 is a hex buffer/line driver with 3-state outputs controlled by the output enable inputs (nOE).

74HC367 Features

* Wide supply voltage range from 2.0 V to 6.0 V
* CMOS low power dissipation
* High noise immunity
* Latch-up performance exceeds 100 mA per JESD 78 Class II Level B
* Complies with JEDEC standards:
* JESD8C (2.7 V to 3.6 V)
* JESD7A (2.0 V to

📥 Download Datasheet

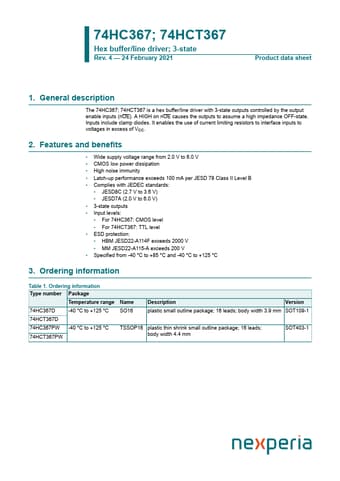

Preview of 74HC367 PDF
datasheet Preview Page 2 datasheet Preview Page 3
