74HC153 Dual 4-input multiplexer

74HC153 Description

74HC153; 74HCT153 Dual 4-input multiplexer Rev.9 * 14 January 2021 Product data sheet 1.General .
The 74HC153; 74HCT153 is a dual 4-input multiplexer.

74HC153 Features

* Input levels:
* For 74HC153: CMOS level
* For 74HCT153: TTL level
* Non-inverting outputs
* Separate enable input for each output
* Common select inputs
* Complies with JEDEC standard no. 7A
* Permits multiplexing from n lines to 1 li

📥 Download Datasheet

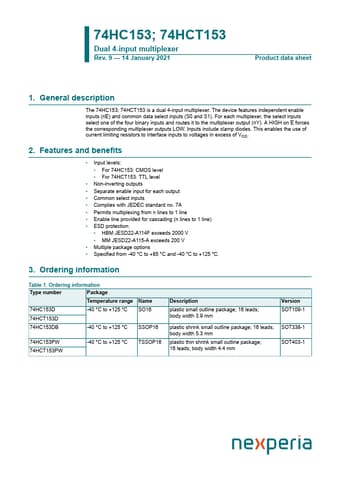

Preview of 74HC153 PDF
