74HC14-Q100 - Hex inverting Schmitt trigger

General Description

The 74HC14-Q100; 74HCT14-Q100 is a hex inverter with Schmitt-trigger inputs.

Key Features

  • Automotive product qualification in accordance with AEC-Q100 (Grade 1).
  • Specified from -40 °C to +85 °C and from -40 °C to +125 °C.
  • Wide supply voltage range from 2.0 to 6.0 V.
  • CMOS low power dissipation.
  • High noise immunity.
  • Unlimited input rise and fall times.
  • Latch-up performance exceeds 100 mA per JESD 78 Class II Level B.
  • Complies with JEDEC standards:.
  • JESD8C (2.7 V to 3.6 V).
  • JESD7A (2.0 V to 6.0 V).

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
74HC14-Q100 Hex inverting Schmitt trigger NXP
74HC14 Hex Inverters Texas Instruments
74HC14 Hex Schmitt-Trigger Inverter ON Semiconductor
74HC14 Hex inverting Schmitt trigger NXP
74HC14 HEX INVERTERS Diodes

Other Datasheets by Nexperia

Part Number Description
74HC14 Hex inverting Schmitt trigger
74HC14D Hex inverting Schmitt trigger
74HC10 Triple 3-input NAND gate
74HC10-Q100 Triple 3-input NAND gate
74HC107 Dual JK flip-flop

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

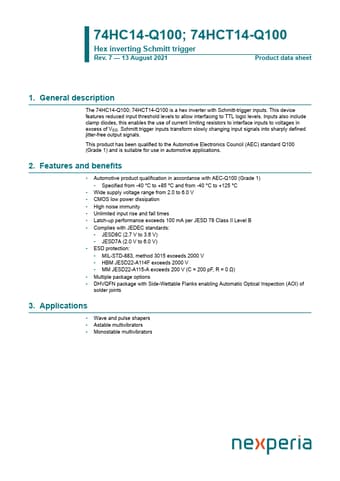

74HC14-Q100; 74HCT14-Q100 Hex inverting Schmitt trigger Rev. 7 — 13 August 2021 Product data sheet 1. General description The 74HC14-Q100; 74HCT14-Q100 is a hex inverter with Schmitt-trigger inputs. This device features reduced input threshold levels to allow interfacing to TTL logic levels. Inputs also include clamp diodes, this enables the use of current limiting resistors to interface inputs to voltages in excess of VCC. Schmitt trigger inputs transform slowly changing input signals into sharply defined jitter-free output signals. This product has been qualified to the Automotive Electronics Council (AEC) standard Q100 (Grade 1) and is suitable for use in automotive applications. 2.
