74AUP1G374-Q100 - Low-power D-type flip-flop

nexperia

📥 Download Datasheet

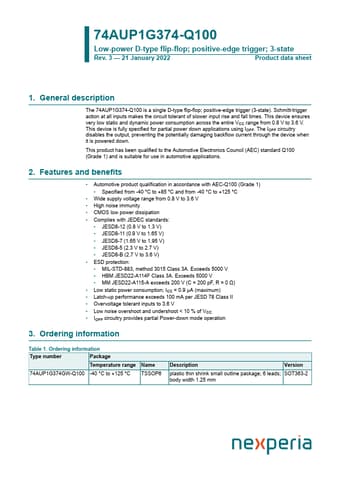

74AUP1G374-Q100 Datasheet Preview — Preview of 74AUP1G374-Q100 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	74AUP1G374-Q100
Manufacturer	nexperia
File Size	266.17 KB
Description	Low-power D-type flip-flop
Datasheet	74AUP1G374-Q100-nexperia.pdf

74AUP1G374-Q100 Product details

Description

The 74AUP1G374-Q100 is a single D-type flip-flop; positive-edge trigger (3-state).

Features

Automotive product qualification in accordance with AEC-Q100 (Grade 1).
Specified from -40 °C to +85 °C and from -40 °C to +125 °C.
Wide supply voltage range from 0.8 V to 3.6 V.
High noise immunity.
CMOS low power dissipation.
Complies with JEDEC standards:.
JESD8-12 (0.8 V to 1.3 V).
JESD8-11 (0.9 V to 1.65 V).
JESD8-7 (1.65 V to 1.95 V).
JESD8-5 (2.3 V to 2.7 V).
JESD8-B (2.7 V to 3.6 V).
