74AHCT573D, 74AHC573 - Octal D-type transparant latch

nexperia

The 74AHCT573D by nexperia is a Octal D-type transparant latch. Below is the official datasheet preview.

📥 Download Datasheet

74AHCT573D Octal D-type transparant latch by nexperia - Datasheet Preview — Official preview page of the 74AHCT573D Octal D-type transparant latch datasheet (nexperia).

Datasheet Details

Part number	74AHCT573D, 74AHC573
Manufacturer	nexperia
File Size	276.55 KB
Description	Octal D-type transparant latch
Datasheet	74AHC573-nexperia.pdf
Note	This datasheet PDF includes multiple part numbers: 74AHCT573D, 74AHC573. Please refer to the document for exact specifications by model.

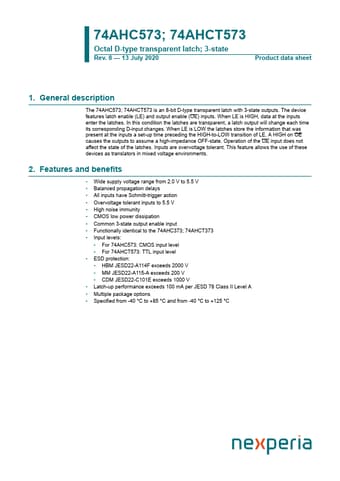

Additional preview pages of the 74AHCT573D datasheet.

74AHCT573D Product details

Description

The 74AHC573; 74AHCT573 is an 8-bit D-type transparent latch with 3-state outputs.

Features

Wide supply voltage range from 2.0 V to 5.5 V.
Balanced propagation delays.
All inputs have Schmitt-trigger action.
Overvoltage tolerant inputs to 5.5 V.
High noise immunity.
CMOS low power dissipation.
Common 3-state output enable input.
Functionally identical to the 74AHC373; 74AHCT373.
Input levels:.
For 74AHC573: CMOS input level.
For 74AHCT573: TTL input level.
ESD protection:.
