74AHCT126BQ, 74AHC126 - Quad buffer/line driver

nexperia

The 74AHCT126BQ by nexperia is a Quad buffer/line driver. Below is the official datasheet preview.

📥 Download Datasheet

74AHCT126BQ Quad buffer/line driver by nexperia - Datasheet Preview — Official preview page of the 74AHCT126BQ Quad buffer/line driver datasheet (nexperia).

Datasheet Details

Part number	74AHCT126BQ, 74AHC126
Manufacturer	nexperia
File Size	246.62 KB
Description	Quad buffer/line driver
Datasheet	74AHC126-nexperia.pdf
Note	This datasheet PDF includes multiple part numbers: 74AHCT126BQ, 74AHC126. Please refer to the document for exact specifications by model.

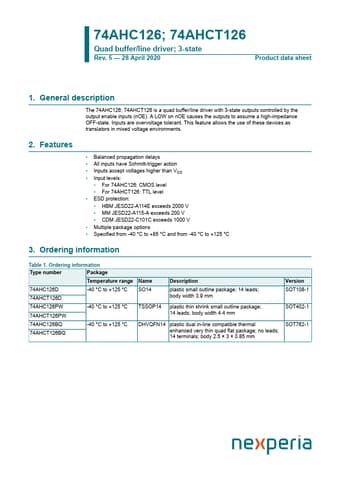

Additional preview pages of the 74AHCT126BQ datasheet.

74AHCT126BQ Product details

Description

The 74AHC126; 74AHCT126 is a quad buffer/line driver with 3-state outputs controlled by the output enable inputs (nOE).

Features

Balanced propagation delays.
All inputs have Schmitt-trigger action.
Inputs accept voltages higher than VCC.
Input levels:.
For 74AHC126: CMOS level.
For 74AHCT126: TTL level.
ESD protection:.
HBM JESD22-A114E exceeds 2000 V.
MM JESD22-A115-A exceeds 200 V.
CDM JESD22-C101C exceeds 1000 V.
Multiple package options.
Specified from -40 °C to +85 °C and from -40 °C to +125 °C 3. Ordering i.
