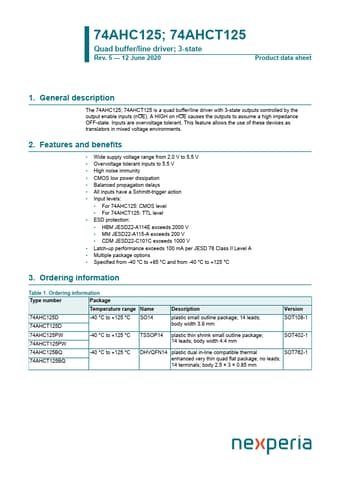

74AHCT125BQ Datasheet Preview — This datasheet PDF includes multiple part numbers: 74AHCT125BQ, 74AHC125. Please refer to the document for exact specifications by model.

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	74AHCT125BQ, 74AHC125
Manufacturer	nexperia ↗
File Size	277.17 KB
Description	Quad buffer/line driver
Datasheet	74AHC125-nexperia.pdf
Note	This datasheet PDF includes multiple part numbers: 74AHCT125BQ, 74AHC125. Please refer to the document for exact specifications by model.

74AHCT125BQ Product details

Description

The 74AHC125; 74AHCT125 is a quad buffer/line driver with 3-state outputs controlled by the output enable inputs (nOE).

Features

Wide supply voltage range from 2.0 V to 5.5 V.
Overvoltage tolerant inputs to 5.5 V.
High noise immunity.
CMOS low power dissipation.
Balanced propagation delays.
All inputs have a Schmitt-trigger action.
Input levels:.
For 74AHC125: CMOS level.
For 74AHCT125: TTL level.
ESD protection:.
HBM JESD22-A114E exceeds 2000 V.
MM JESD22-A115-A exceeds 200 V.
CDM JESD22-C101C exceeds 100.
