74AHCT00, 74AHC00 - Quad 2-input NAND gate

nexperia

The 74AHCT00 by nexperia is a Quad 2-input NAND gate. Below is the official datasheet preview.

📥 Download Datasheet

74AHCT00 Quad 2-input NAND gate by nexperia - Datasheet Preview — Official preview page of the 74AHCT00 Quad 2-input NAND gate datasheet (nexperia).

Datasheet Details

Part number	74AHCT00, 74AHC00
Manufacturer	nexperia
File Size	256.04 KB
Description	Quad 2-input NAND gate
Datasheet	74AHC00-nexperia.pdf
Note	This datasheet PDF includes multiple part numbers: 74AHCT00, 74AHC00. Please refer to the document for exact specifications by model.

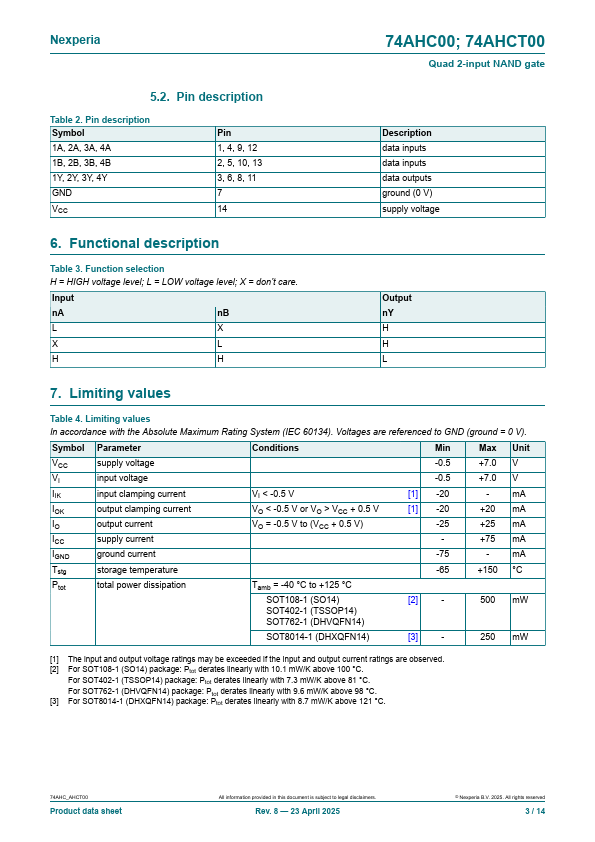

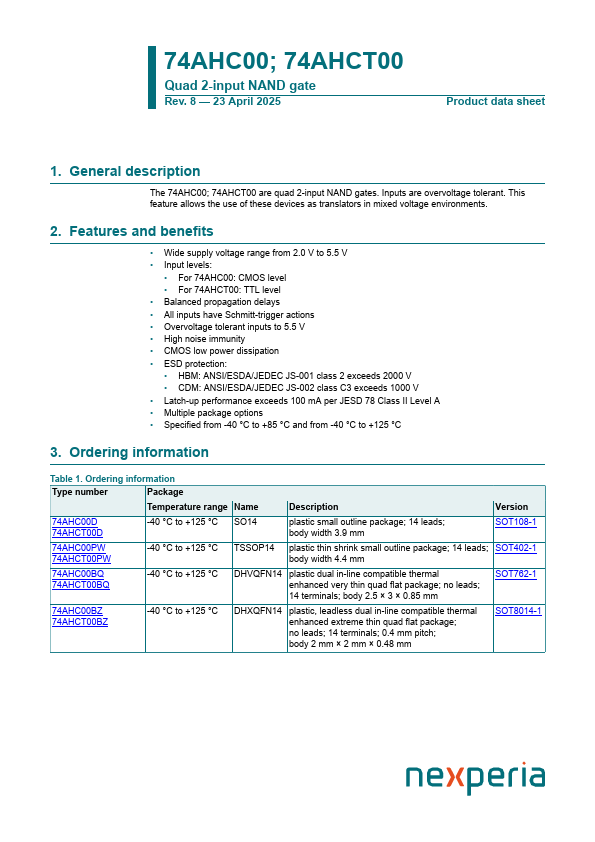

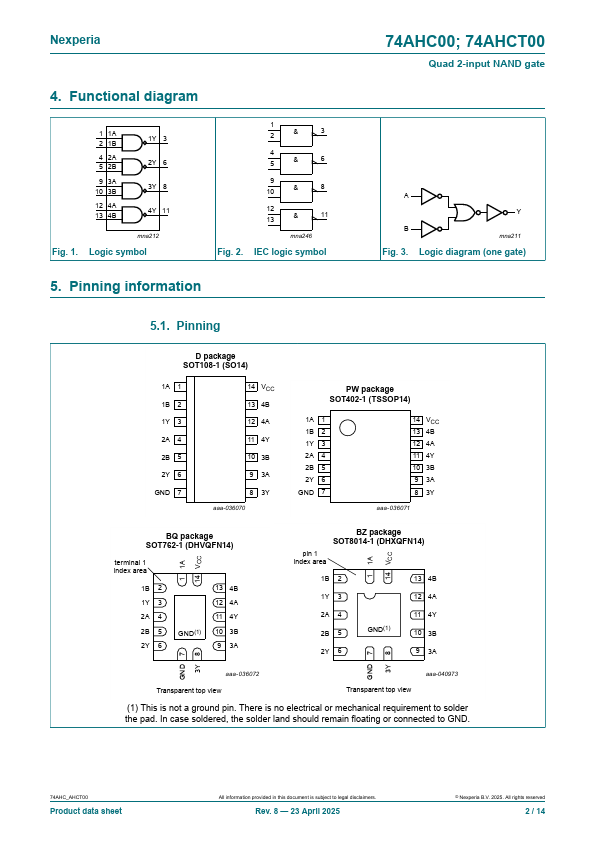

Additional preview pages of the 74AHCT00 datasheet.

74AHCT00 Product details

Description

The 74AHC00; 74AHCT00 are quad 2-input NAND gates.

Features

Wide supply voltage range from 2.0 V to 5.5 V.
Input levels:.
For 74AHC00: CMOS level.
For 74AHCT00: TTL level.
Balanced propagation delays.
All inputs have Schmitt-trigger actions.
Overvoltage tolerant inputs to 5.5 V.
High noise immunity.
CMOS low power dissipation.
ESD protection:.
HBM: ANSI/ESDA/JEDEC JS-001 class 2 exceeds 2000 V.
CDM: ANSI/ESDA/JEDEC JS-002 class C3 exceeds 1000 V.
