LN4916 - High Sensitivity CMOS Hall IC

Description

LN4916 is with two Hall effect plates and a CMOS output driver, mainly designed for battery

powered, hand-held equipment (such as Cellular and Cordless Phone, PDA).

E.g.

as an On/Off switch in Cellular Flip-Phones, with battery operating voltages of 2.4V-5.5V.

Features

  • to 5.5V battery operation.
  • Operation with North or South Pole.
  • Chopper stabilized.
  • Superior.

📥 Download Datasheet

Datasheet Details

Part number LN4916
Manufacturer natlinear
File Size 235.16 KB
Description High Sensitivity CMOS Hall IC
Datasheet download datasheet LN4916 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
LN49YPX Round Type Panasonic Semiconductor
LN4023-13 THREE DIGIT DISPLAY LEDTECH
LN416YPH 3.0 mm X 7.0 mm Series Panasonic Semiconductor
LN417YPH 5.3 mm X 1.8 mm Series Panasonic Semiconductor
LN41YCPH Round Type Panasonic Semiconductor

Other Datasheets by natlinear

Part Number Description
LN4911 High Sensitivity CMOS Hall IC
LN4912 Ultra-Sensitive Hall Effect Switch
LN4913 High Sensitivity CMOS Hall IC
LN4915 High Sensitivity CMOS Hall IC
LN4919 CMOS Hall IC

Full PDF Text Transcription

Click to expand full text

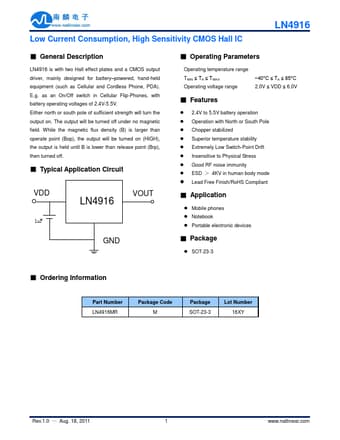

Low Current Consumption, High Sensitivity CMOS Hall IC LN4916 ■ General Description LN4916 is with two Hall effect plates and a CMOS output driver, mainly designed for battery–powered, hand-held equipment (such as Cellular and Cordless Phone, PDA). E.g. as an On/Off switch in Cellular Flip-Phones, with battery operating voltages of 2.4V-5.5V. Either north or south pole of sufficient strength will turn the output on. The output will be turned off under no magnetic field. While the magnetic flux density (B) is larger than operate point (Bop), the output will be turned on (HIGH), the output is held until B is lower than release point (Brp), then turned off.
