LN2113 - High Efficiency 1.5X Fractional Charge Pumps

Name: LN2113
SKU: LN2113-1316491

📥 Download Datasheet

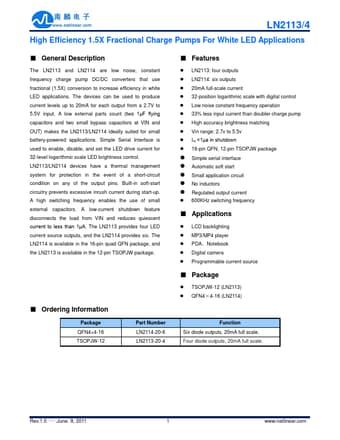

LN2113 Datasheet Preview — Preview of LN2113 PDF

Datasheet Details

Part number	LN2113
Manufacturer	natLinear
File Size	327.82 KB
Description	High Efficiency 1.5X Fractional Charge Pumps
Datasheet	LN2113-natlinear.pdf

LN2113 Product details

Description

The LN2113 and LN2114 are low noise, constant frequency charge pump DC/DC converters that use fractional (1.5X) conversion to increase efficiency in white LED applications.

Features

br>.
LN2113: four outputs.
LN2114: six outputs.
20mA full-scale current.
32-position logarithmic scale with digital control.
Low noise constant frequency operation.
33% less input current than doubler charge pump.
High accuracy brightness matching.
Vin range: 2.7v to 5.5v.
IQ.
