NKT90 - 90A Diode and Thyristor

Product Overview

nELL

📥 Download Datasheet

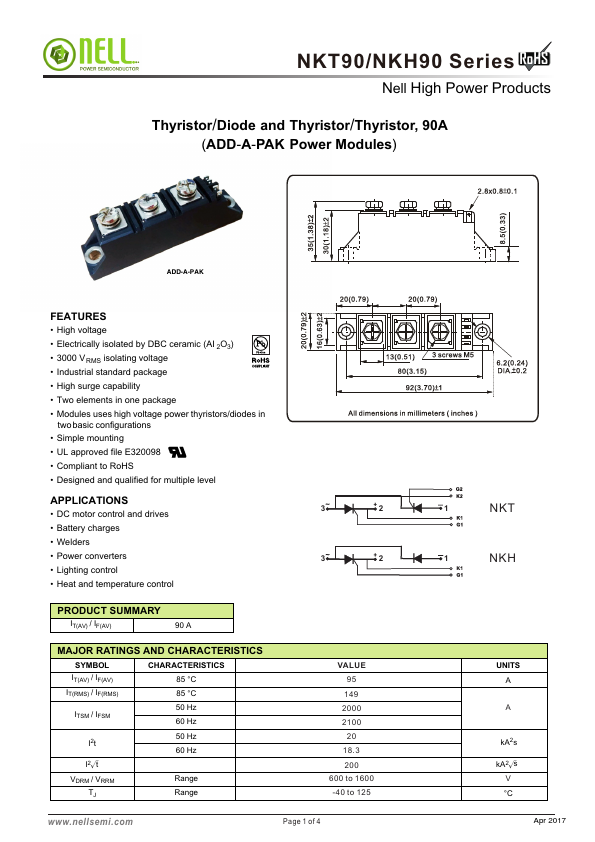

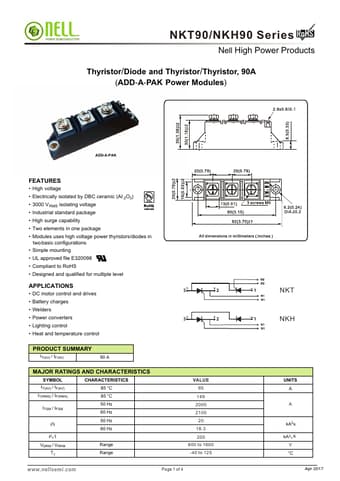

NKT90 90A Diode and Thyristor by nELL - Datasheet Preview — Datasheet preview – NKT90

Datasheet Details

Part number	NKT90
Manufacturer	nELL
File Size	786.93 KB
Description	90A Diode and Thyristor
Datasheet	NKT90 Datasheet

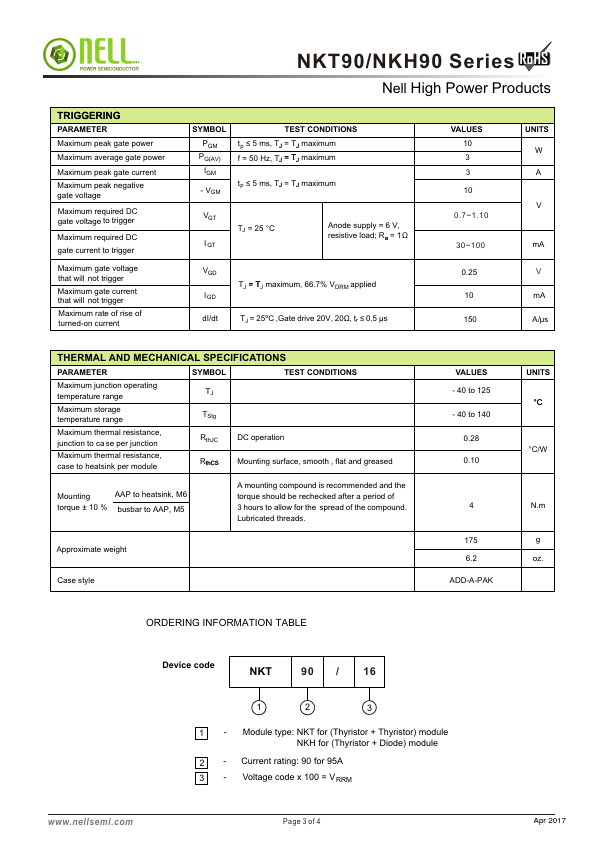

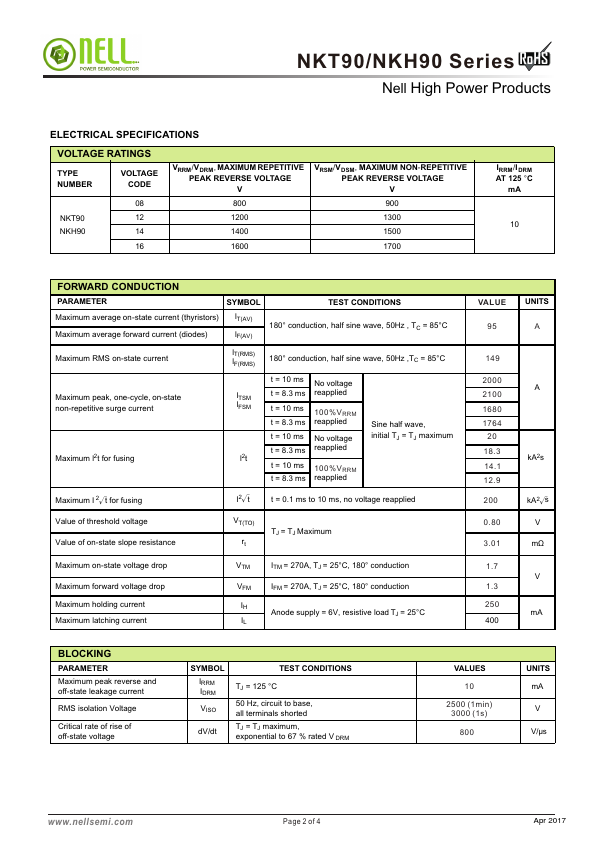

Additional preview pages of the NKT90 datasheet.

Product details

Features

High voltage.
Electrically isolated by DBC ceramic (AI 2O3).
3000 VRMS isolating voltage.
Industrial standard package.
High surge capability.
Two elements in one package.
Modules uses high voltage power thyristors/diodes in two basic configurations.
Simple mounting.
UL approved file E320098.
Compliant to RoHS.
Designed and qualified for multiple level.
