NKJ110A - 110A Standard Recovery Diodes

Product Overview

nELL

Datasheet Details

Part number	NKJ110A
Manufacturer	nELL
File Size	757.85 KB
Description	110A Standard Recovery Diodes
Datasheet	NKJ110A Datasheet

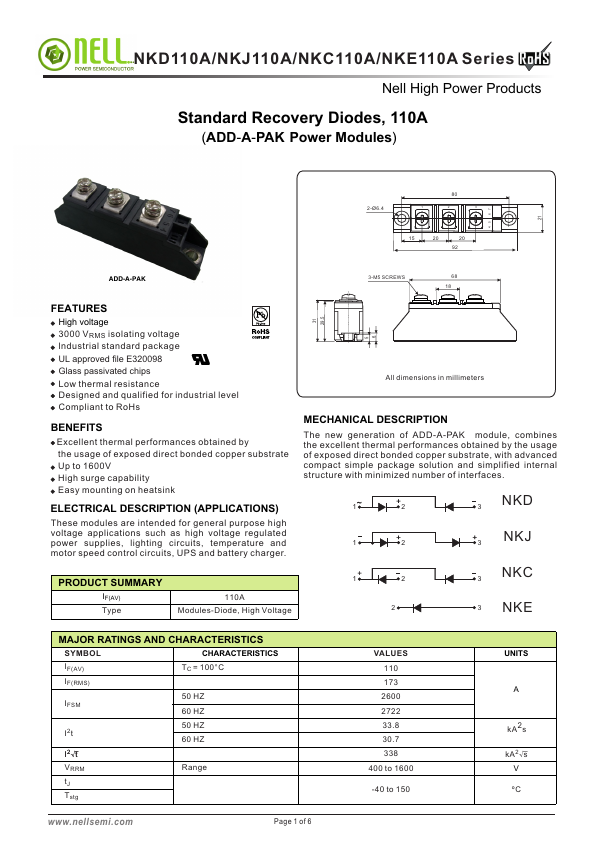

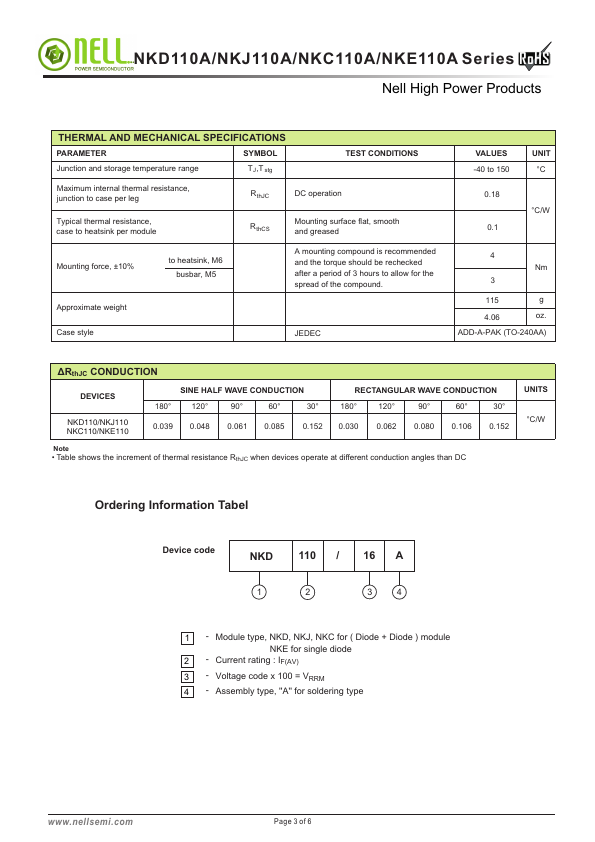

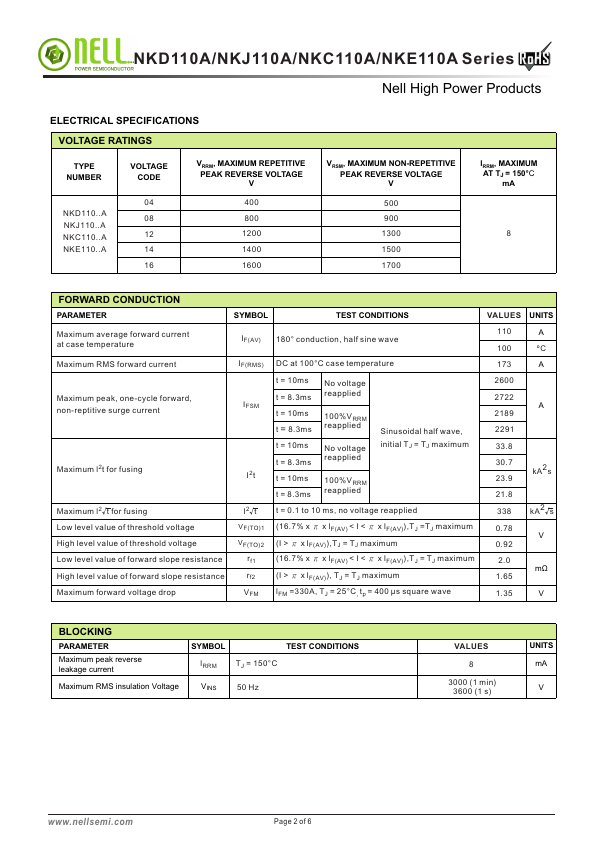

Additional preview pages of the NKJ110A datasheet.

Product details

Description

(APPLICATIONS) These modules are intended for general purpose high voltage applications such as high voltage regulated power supplies, lighting circuits, temperature and motor speed control circuits, UPS and battery charger.All dimensions in millimeters MECHANICAL DESCRIPTION The new generation of ADD-A-PAK module, combines the excellent thermal performances obtained by the usage of exposed direct bonded copper substrate, with advanced compact simple package solution and simplified internal s

Features

High voltage 3000 VRMS isolating voltage lndustrial standard package UL approved file E320098 Glass passivated chips Low thermal resistance Designed and qualified for industrial level Compliant to RoHs.
