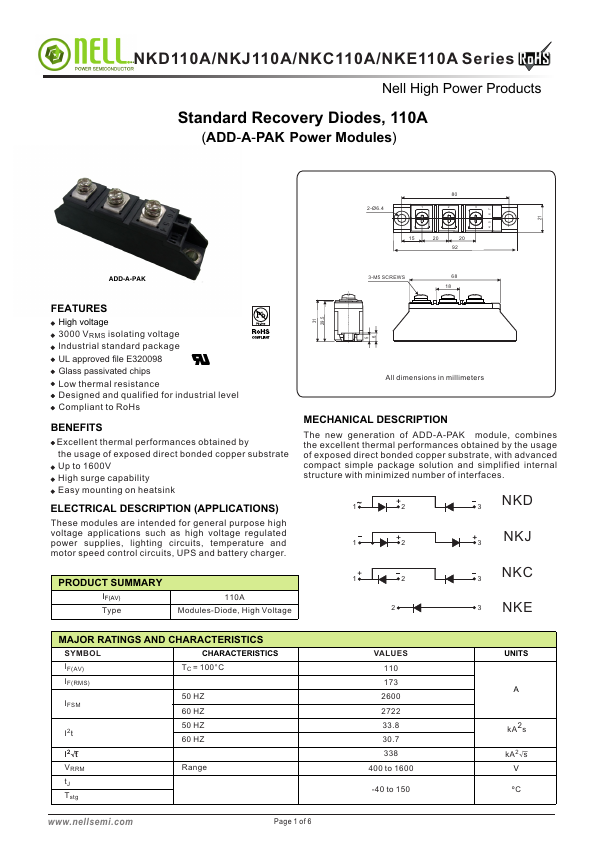

NKC110A Datasheet (nELL) - 110A Standard Recovery Diodes

NKC110A, 110A Standard Recovery Diodes

(APPLICATIONS) These modules are intended for general purpose high voltage applications such as high voltage regulated power supplies, lighting circuits, temperature and motor speed control circuits, UPS and battery charger.

All dimensions in millimeters MECHANICAL DESCRIPTION The new generation o

NKC110A Features

* High voltage 3000 VRMS isolating voltage lndustrial standard package UL approved file E320098 Glass passivated chips Low thermal resistance Designed and qualified for industrial level Compliant to RoHs BENEFITS Excellent thermal performances obtained by the usage of exposed direct bonded copper subs
