KBPC3506 - Single-Phase Bridge Rectifier

Features

  • UL recognition file number E320098 Universal 3-way terminals: snap-on, wire wrap-around, or PCB mounting High surge current capability Low thermal resistance Solder dip 260°C, 40s Compliant to RoHS.

📥 Download Datasheet

Datasheet preview – KBPC3506

📁 Similar Datasheet

  • KBPC3506 - 35A SINGLE PHASE BRIDGE RECTIFIER (WON-TOP)
  • KBPC3506 - 35.0A Single-Phase Silicon Bridge Rectifier (SEP ELECTRONIC)
  • KBPC3506 - Glass Passivated Bridge Rectifier (Multicomp)
  • KBPC3506 - SINGLE-PHASE SILICON BRIDGE RECTIFIER (DC COMPONENTS)
  • KBPC3506 - HIGH CURRENT SINGLE-PHASE SILICON BRIDGE RECTIFIERS (SEMTECH)
  • KBPC3506 - High Current 35 AMPS. Single Phase Glass Passivated Bridge Rectifiers (Suntan)
  • KBPC3506 - Glass Passivated Bridge Rectifiers (Eris)
  • KBPC3506 - Bridge Rectifier (Formosa MS)
  • KBPC3506 - Single Phase Glass Passivated Bridge Rectifiers (Kingtronics)
  • KBPC3506 - SINGLE-PHASE SILICON BRIDGE RECTIFIER(VOLTAGE (Wing Shing Computer Components)
Other Datasheets by nELL
  • KBPC3508 - Single-Phase Bridge Rectifier
  • KBPC3510 - Single-Phase Bridge Rectifier
  • KBPC3512 - Single-Phase Bridge Rectifier

Full PDF Text Transcription

Click to expand full text

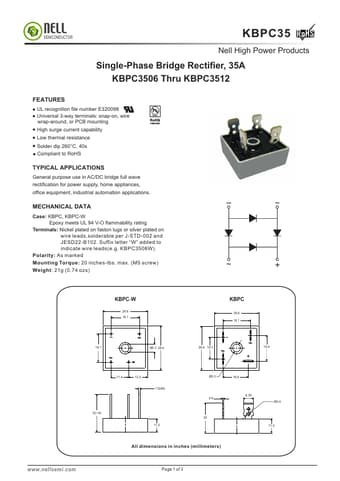

SEMICONDUCTOR KBPC35 RRooHHSS Nell High Power Products Single-Phase Bridge Rectifier, 35A KBPC3506 Thru KBPC3512 FEATURES UL recognition file number E320098 Universal 3-way terminals: snap-on, wire wrap-around, or PCB mounting High surge current capability Low thermal resistance Solder dip 260°C, 40s Compliant to RoHS TYPICAL APPLICATIONS General purpose use in AC/DC bridge full wave rectification for power supply, home appliances, office equipment, industrial automation applications. MECHANICAL DATA Case: KBPC, KBPC-W Epoxy meets UL 94 V-O flammability rating Terminals: Nickel plated on faston lugs or silver plated on wire leads,solderable per J-STD-002 and JESD22-B102. Suffix letter “W” added to indicate wire leads(e.g. KBPC3506W). Polarity: As marked Mounting Torque: 20 inches-lbs.
