D3000D25 - 3000A Standard Recovery Diode

Product Overview

nELL

📥 Download Datasheet

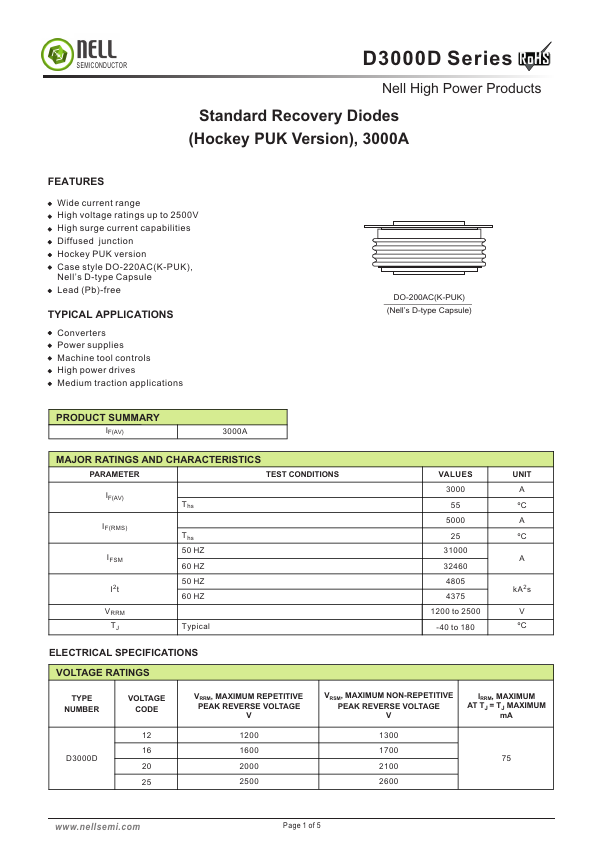

D3000D25 3000A Standard Recovery Diode by nELL - Datasheet Preview — Datasheet preview – D3000D25

Datasheet Details

Part number	D3000D25
Manufacturer	nELL
File Size	207.70 KB
Description	3000A Standard Recovery Diode
Datasheet	D3000D25 Datasheet
Note	This datasheet PDF includes multiple part numbers: D3000D25, D3000D. Please refer to the document for exact specifications by model.

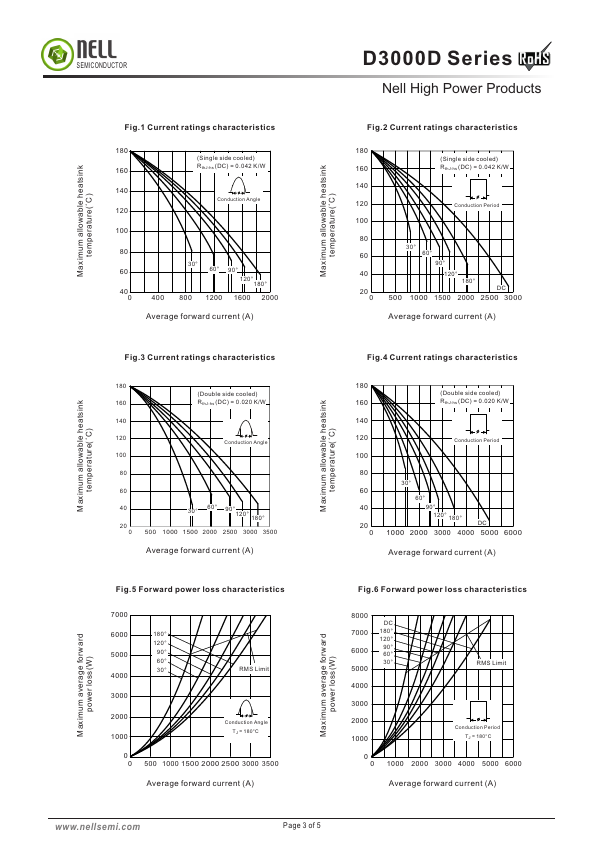

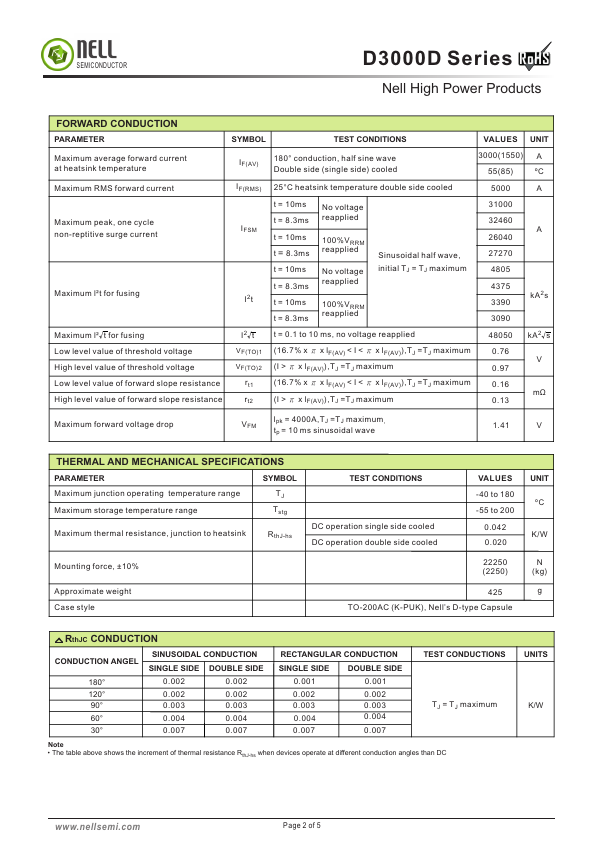

Additional preview pages of the D3000D25 datasheet.

Product details

Features

Wide current range High voltage ratings up to 2500V High surge current capabilities Diffused junction Hockey PUK version Case style DO-220AC(K-PUK), Nell’s D-type Capsule Lead (Pb)-free.
