1000PT12C0, 1000PT08C0 - 1000A Phase Control Thyristors

Name: 1000PT12C0
SKU: 1000PT12C0-1584434

nELL

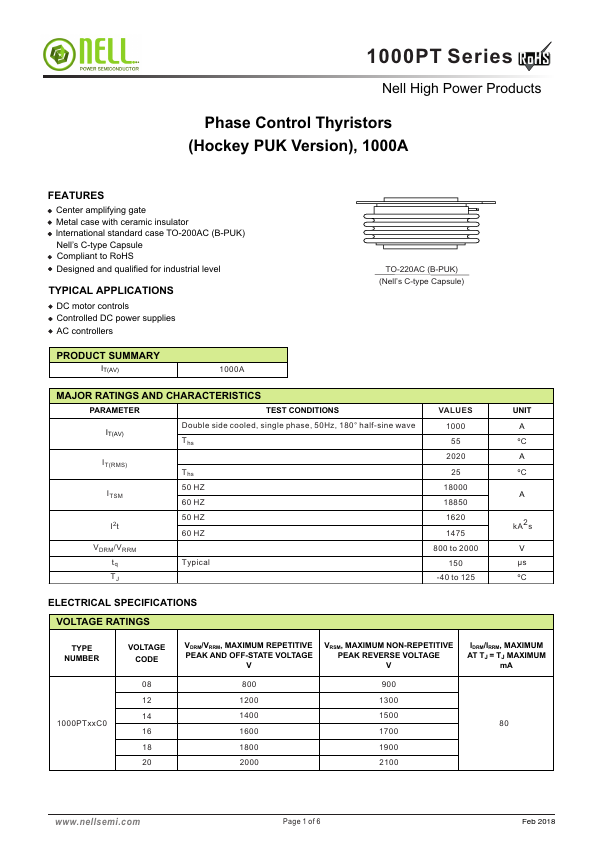

The 1000PT12C0 by nELL is a 1000A Phase Control Thyristors. Below is the official datasheet preview.

Datasheet Details

Part number	1000PT12C0, 1000PT08C0
Manufacturer	nELL
File Size	676.72 KB
Description	1000A Phase Control Thyristors
Datasheet	1000PT08C0-nELL.pdf
Note	This datasheet PDF includes multiple part numbers: 1000PT12C0, 1000PT08C0. Please refer to the document for exact specifications by model.

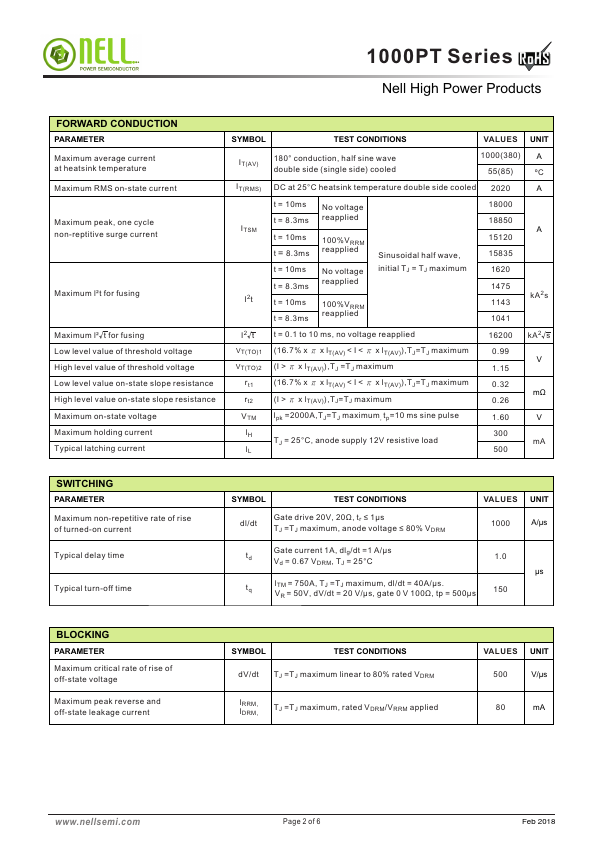

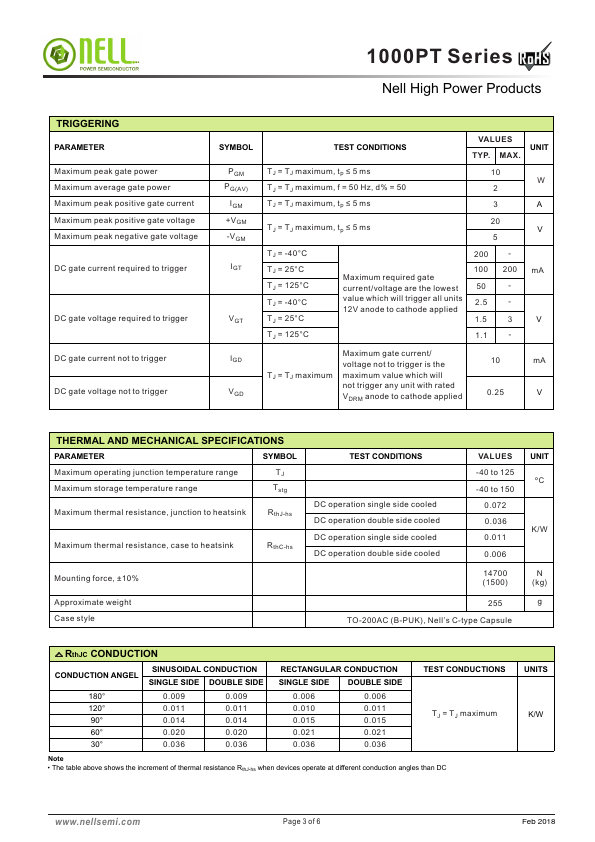

Additional preview pages of the 1000PT12C0 datasheet.

Center amplifying gate Metal case with ceramic insulator lnternational standard case TO-200AC (B-PUK) Nell’s C-type Capsule Compliant to RoHS Designed and qualified for industrial level.
