NMK0515SC - 3kVDC Isolated 2W Single & Dual Output DC-DC Converters

Product Overview

muRata

📥 Download Datasheet

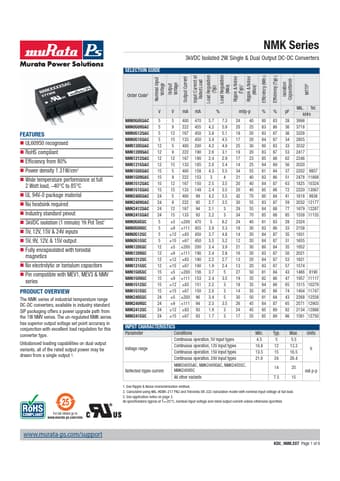

NMK0515SC 3kVDC Isolated 2W Single & Dual Output DC-DC Converters by muRata - Datasheet Preview — Datasheet preview – NMK0515SC

Datasheet Details

Part number	NMK0515SC
Manufacturer	muRata
File Size	293.32 KB
Description	3kVDC Isolated 2W Single & Dual Output DC-DC Converters
Datasheet	NMK0515SC Datasheet
Note	This datasheet PDF includes multiple part numbers: NMK0515SC, NMK0505SAC. Please refer to the document for exact specifications by model.
Additional preview pages of the NMK0515SC datasheet.

Product details

Features

UL60950 recognised.
RoHS compliant.
Efﬁciency from 80%.
Power density 1.31W/cm3.
Wide temperature performance at full 2 Watt load,.
40°C to 85°C.
UL 94V-0 package material.
No heatsink required.
Industry standard pinout.
3kVDC isolation (1 minute) ‘Hi Pot Test’.
5V, 12V, 15V & 24V inputs.
5V, 9V, 12V, & 15V output.
Fully encapsulated with toroidal magnetics.
No electrolyt.
